ICRSS Pro & IC View: Adding A Device

This article will go over how to gain access to your surveillance device via P2P.

• Installation
• P2P Device Enrollment
• IP Address
• Manual Add P2P

Installation

Installation instructions apply for both ICRSS Pro and IC View.

1. Download the application from the Play Store or App Store.

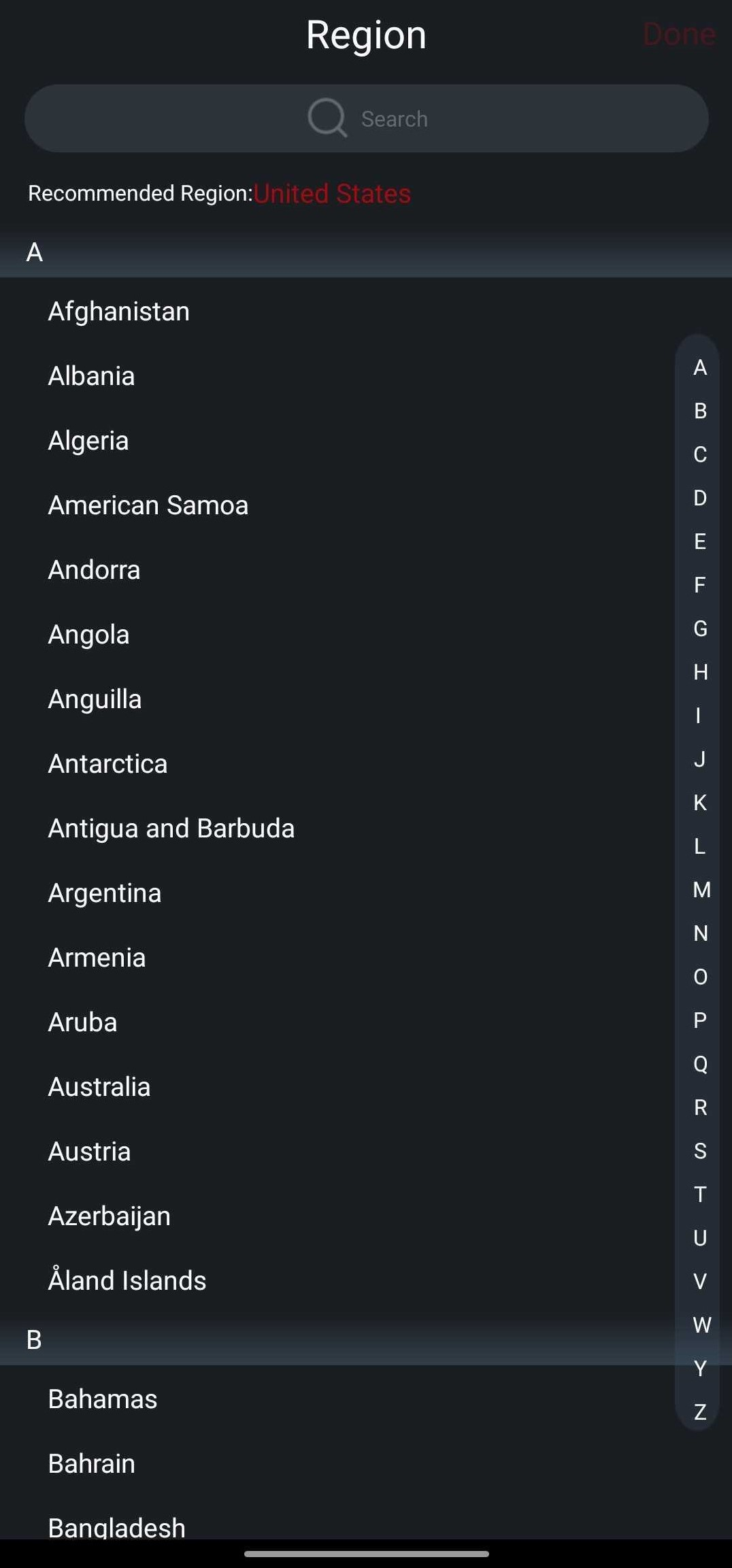

2. In most situations, you can tap the recommended region then save in the top right. If the recommended region is incorrect, select the appropriate region from the list.

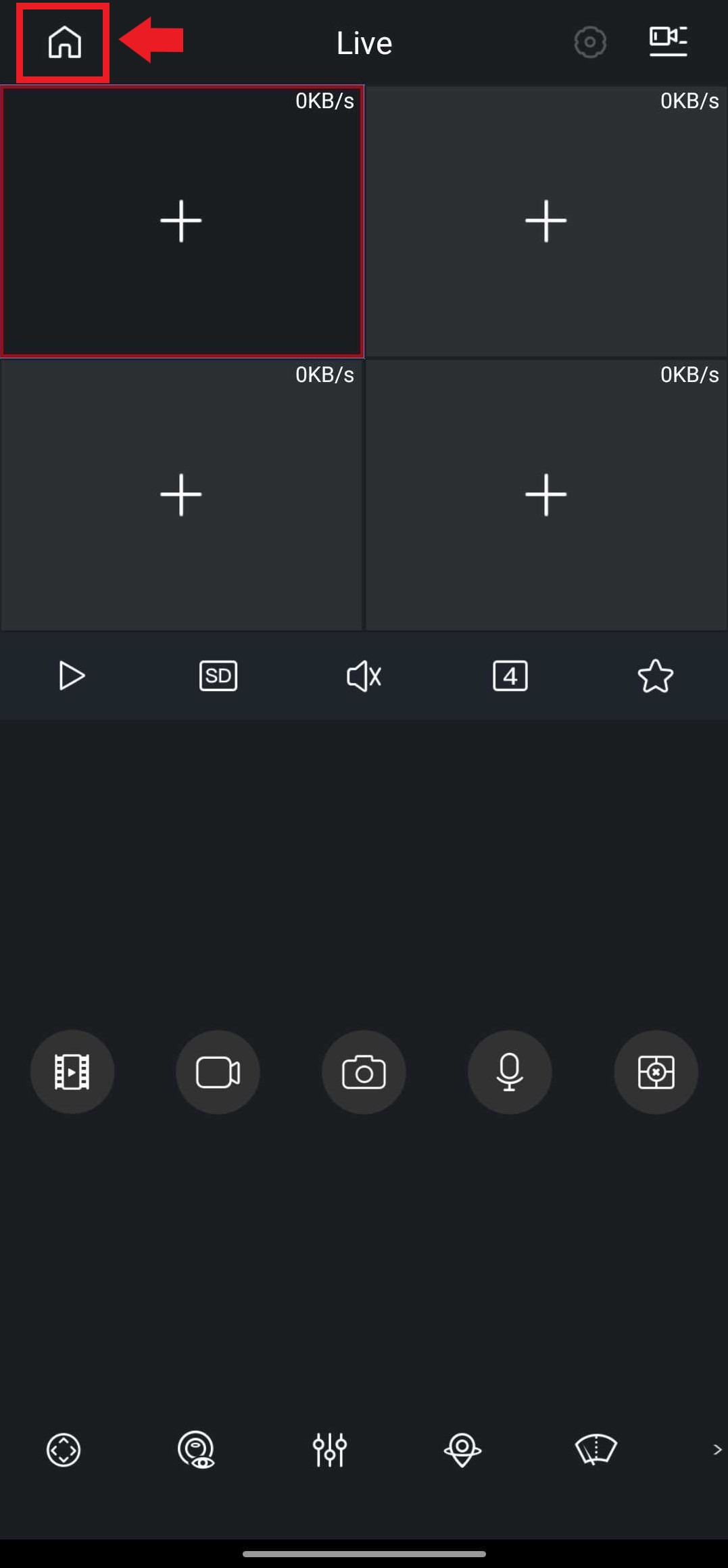

3. Select the Home option in the top left



P2P Device Enrollment

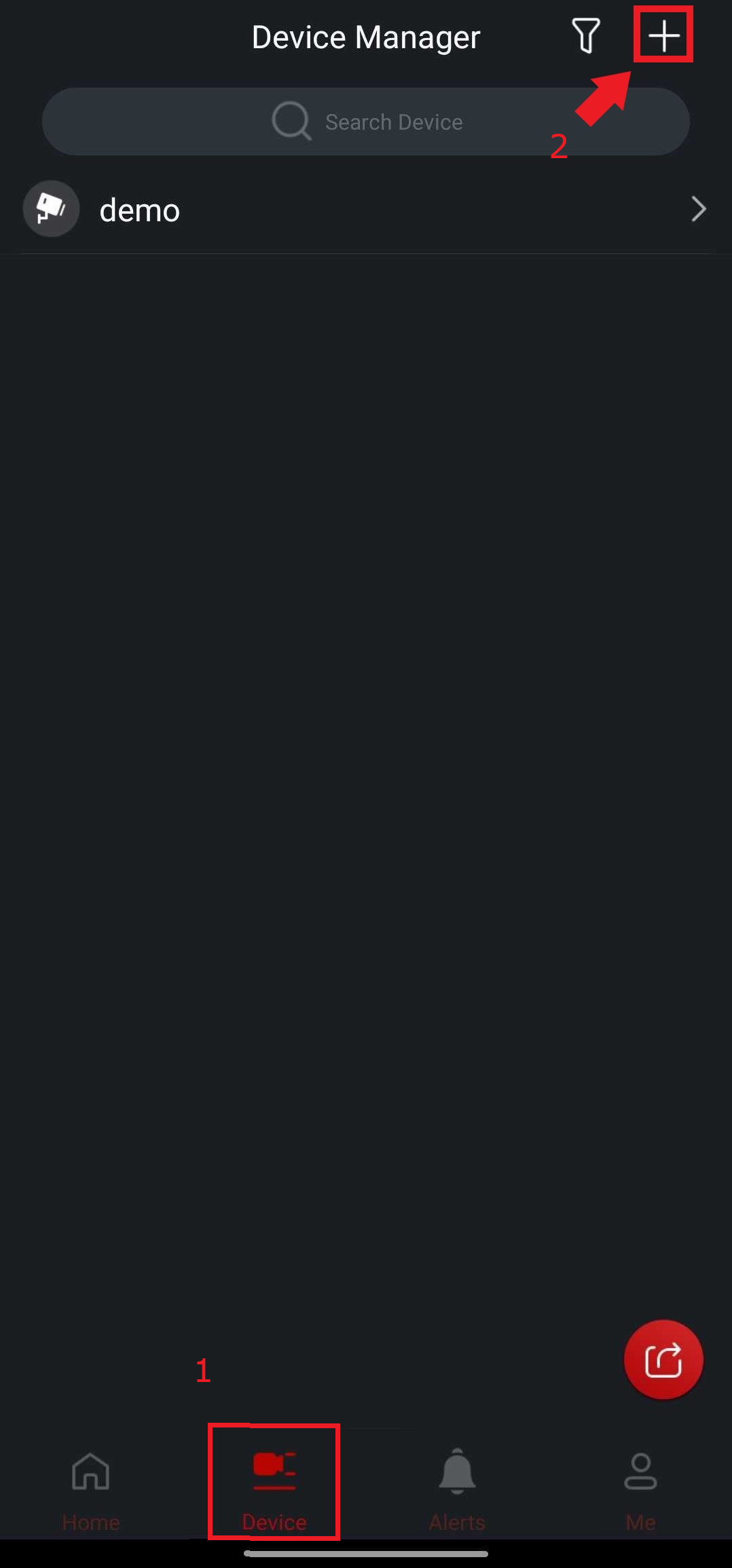

1. Select Device from the Navigation Bar.
2. Tap the + button in the top-right of the Device Manager window and select P2P/SN.

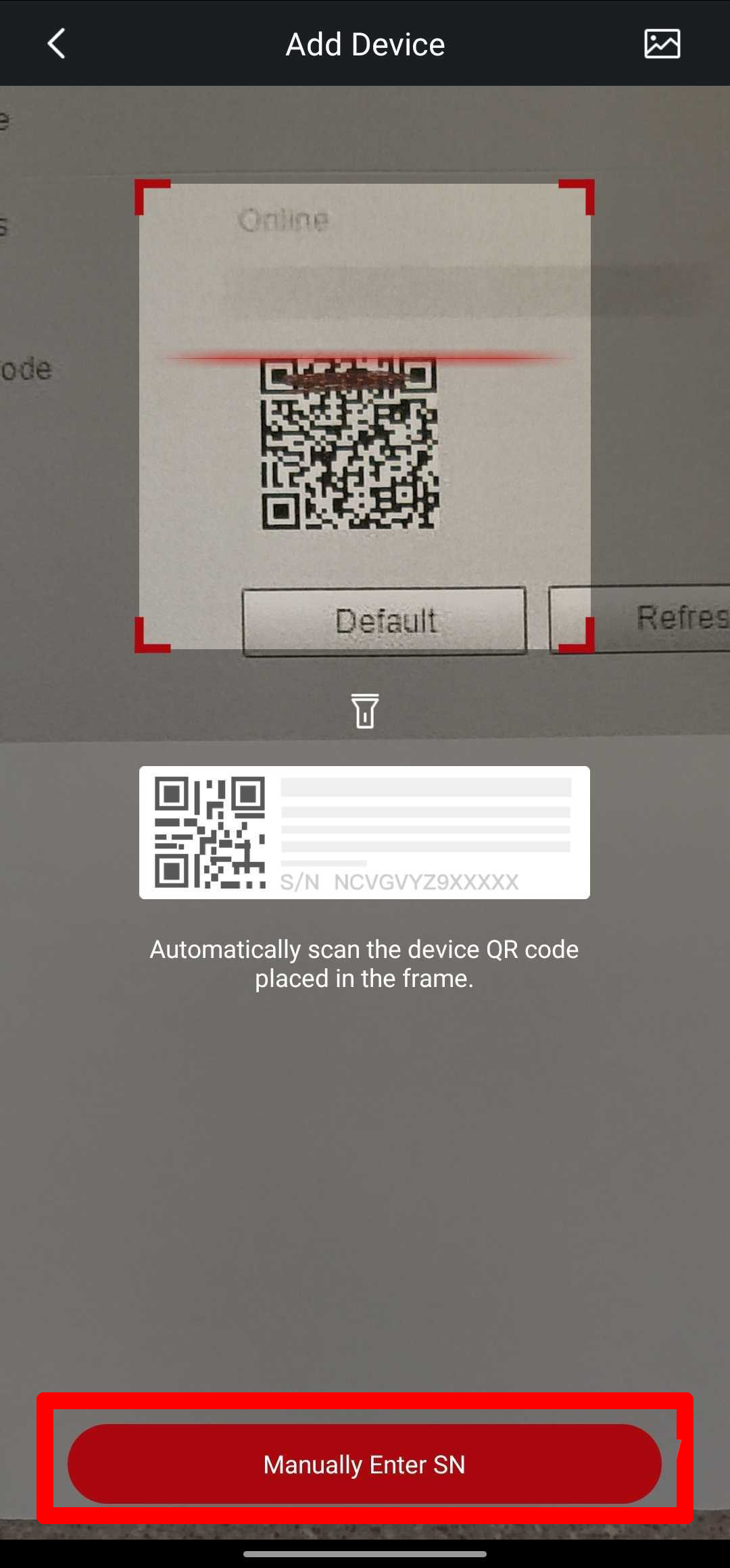

3. You can scan the QR code if you have access to the P2P settings page. Alternatively, you can manually type in the serial number by selecting Manually Enter SN.

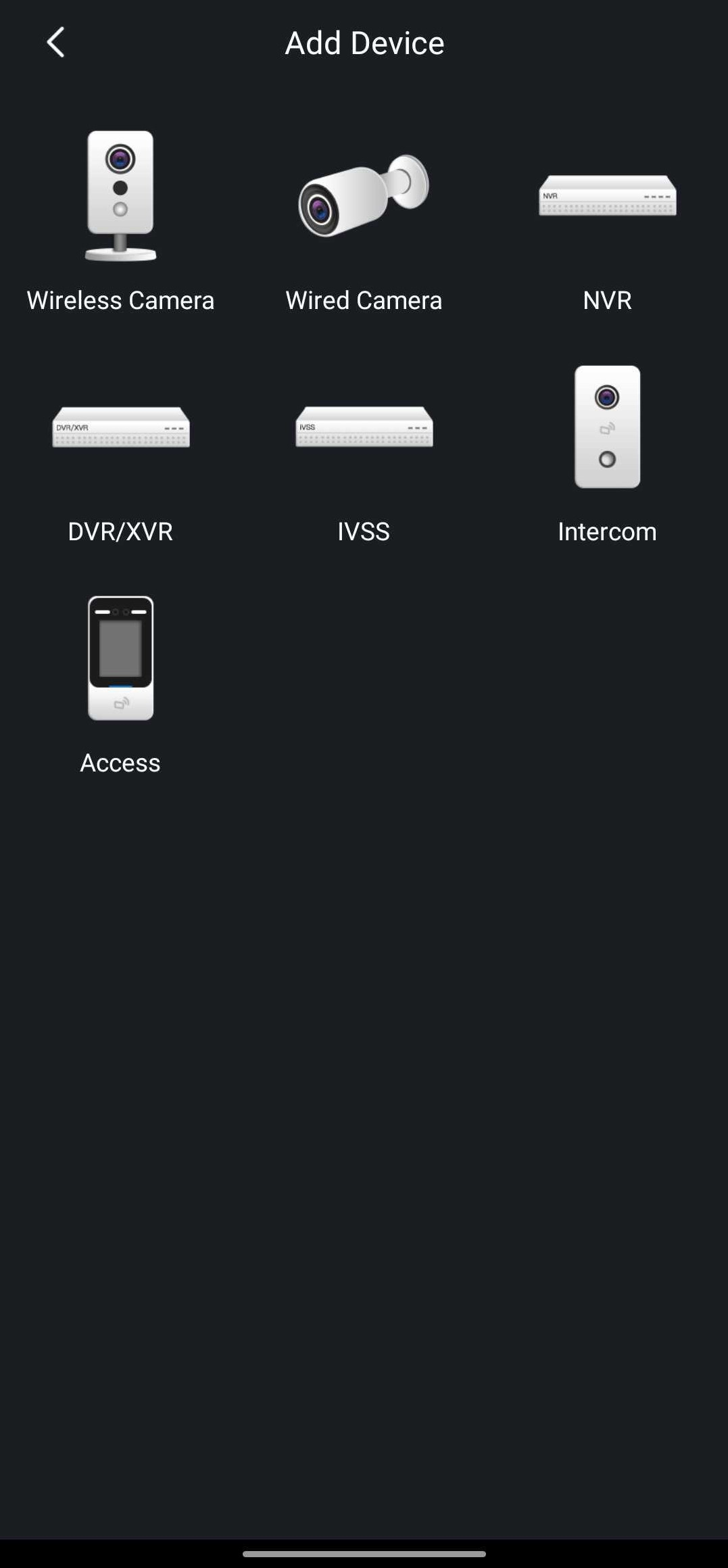

4. Select the device type. Most of the time this will be an NVR or a DVR.

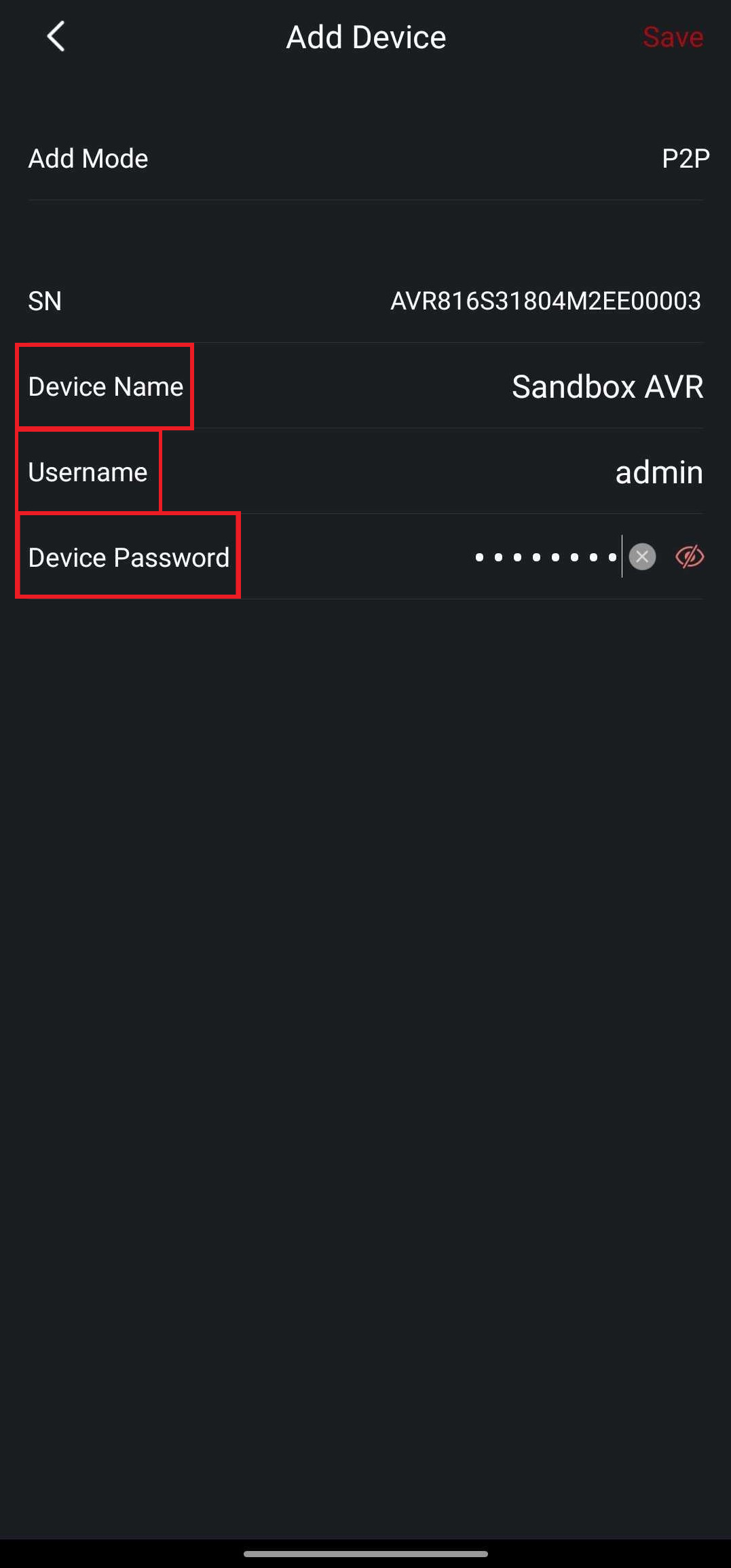

5. Fill in the following:
   1. Device Name - Device Name is how the app refers to the device. You can name this anything.
   2. Username - The username for the NVR/AVR.
   3. Password - The password for the NVR/AVR.
6. Click the Save button in the top-right after all fields have been completed.



IP Address

1. Select Device from the Navigation Bar.
2. Tap the + button in the top-right of the Device Manager window and select IP/Domain
3. Select the device type. Most of the time this will be an NVR or a DVR.

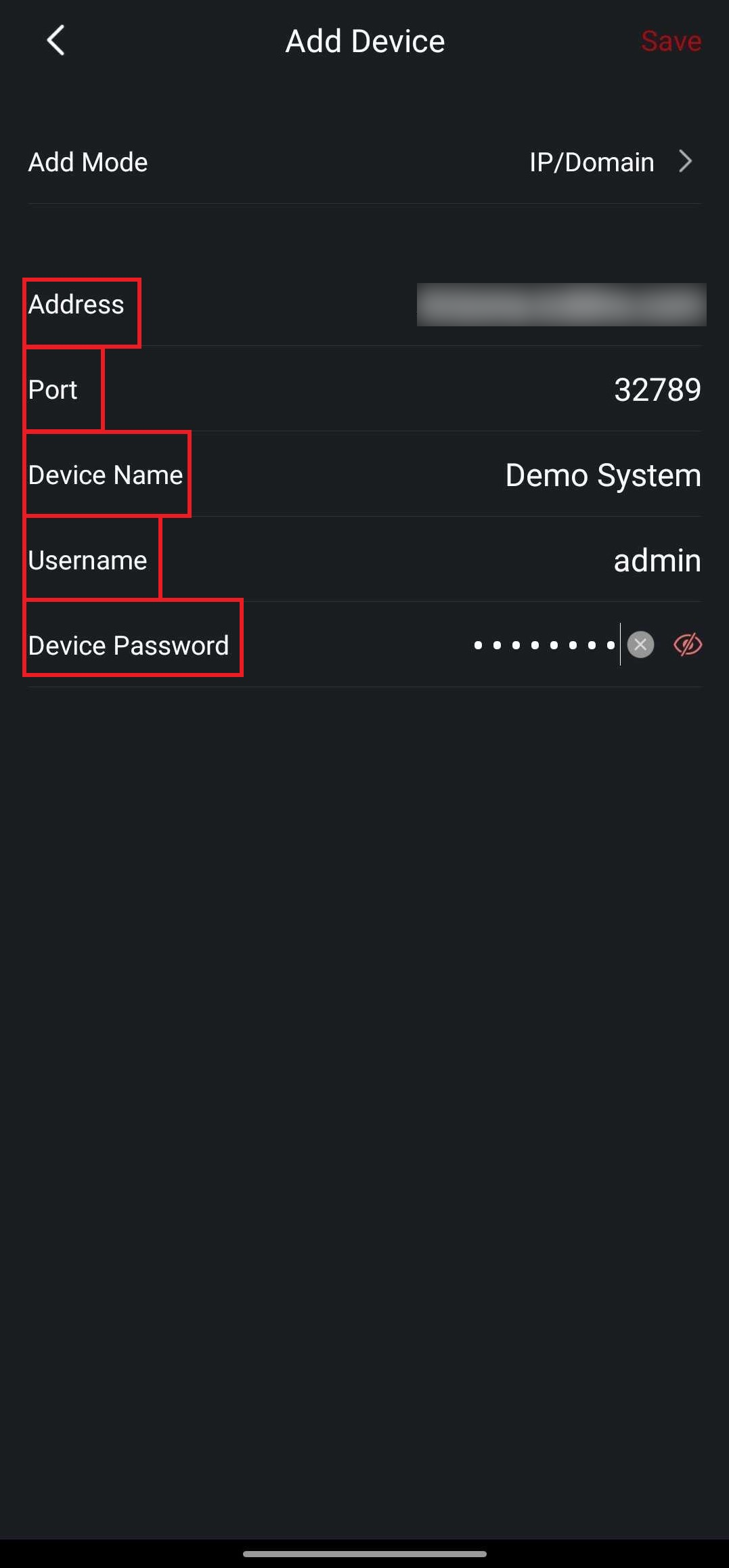

4. Fill in the following:
   1. Address - The IP address e.g. [Local: 192.168.1.108]
   2. Port - The TCP port of the NVR/AVR. The default values are 32789 or 37777.
   3. Device Name - Device Name is how the app refers to the device. You can name this anything.
   4. Username - The username for the NVR/AVR.
   5. Password - The password for the NVR/AVR.
5. Click the Save button in the top-right after all fields have been completed.



Manual Add P2P

If you only have the SN and credentials but no QR code or IP connection information. We can manually add a P2P connection. Please note: This does require the units Serial Number, username, and password.

1. Select Device from the Navigation Bar.
2. Tap the + button in the top-right of the Device Manager window and select P2P/SN.
3. Tap "Manually Enter SN"
4. Select the device type. Most of the time this will be an NVR or a DVR.
5. Fill in the following:
   1. Device Name - Device Name is how the app refers to the device. You can name this anything.
   2. Username - The username for the NVR/AVR.
   3. Password - The password for the NVR/AVR.
6. Click the Save button in the top-right after all fields have been completed.

If you are unable to connect your device via P2P please contact our tech support call center at 866.997.9009
