Dinger Doorstation Keycard / Fob programming

The Dinger Doorstation was formerly called the IPMX-DB20-IRW1 or IPMX-DB20-IRB1. All content in this guide will apply to both the Dinger Doorstation and products with the IPMX-DB20-IRW(B)1 part names.

Table of Contents

• Notice
• Introduction
• Programming a key card / fob for access

NOTICE

This function will only operate as expected if you have connected an electric strike or electromagnetic lock to the Dinger Doorstation.

Introduction

The Dinger Doorstation supports high frequency 13.56 MHz UID writable IC smart key cards / fobs. These are small portable devices, typically attached to a key ring or stored in a wallet, that are used for authentication, access control, or identification. In this case they are used to automatically unlock an electric strike or electromagnetic lock connected to a Dinger Doorstation. These keycards can be easily found online for purchase simply by searching for "13.56MHz MiFare".

Programming a key card / fob for access

01. Log directly into the Dinger Doorstation using it's LAN IP address via the web browser of your choice.

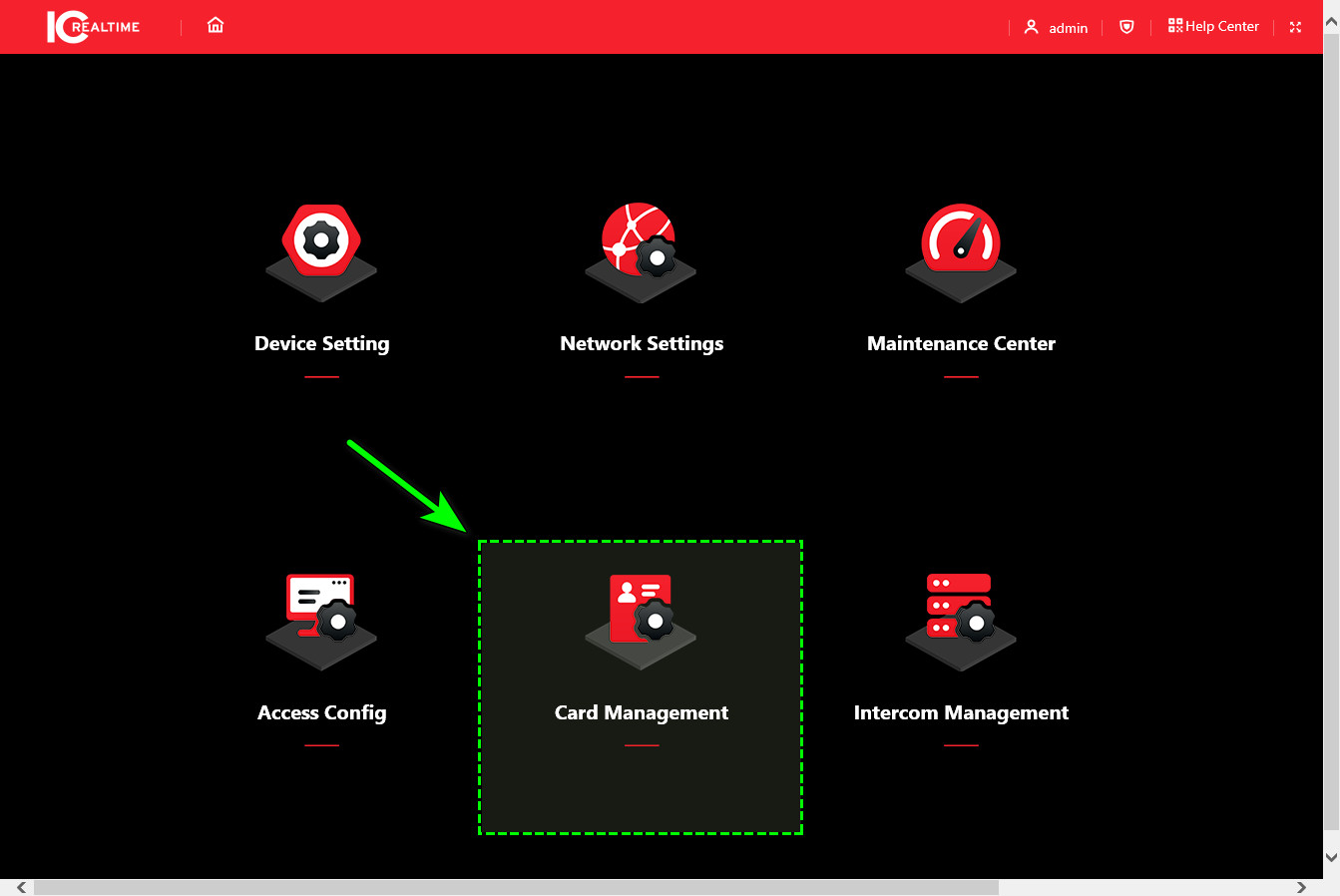

02. Select "Card Management"

(Click the thumbnail to view the full-sized image)

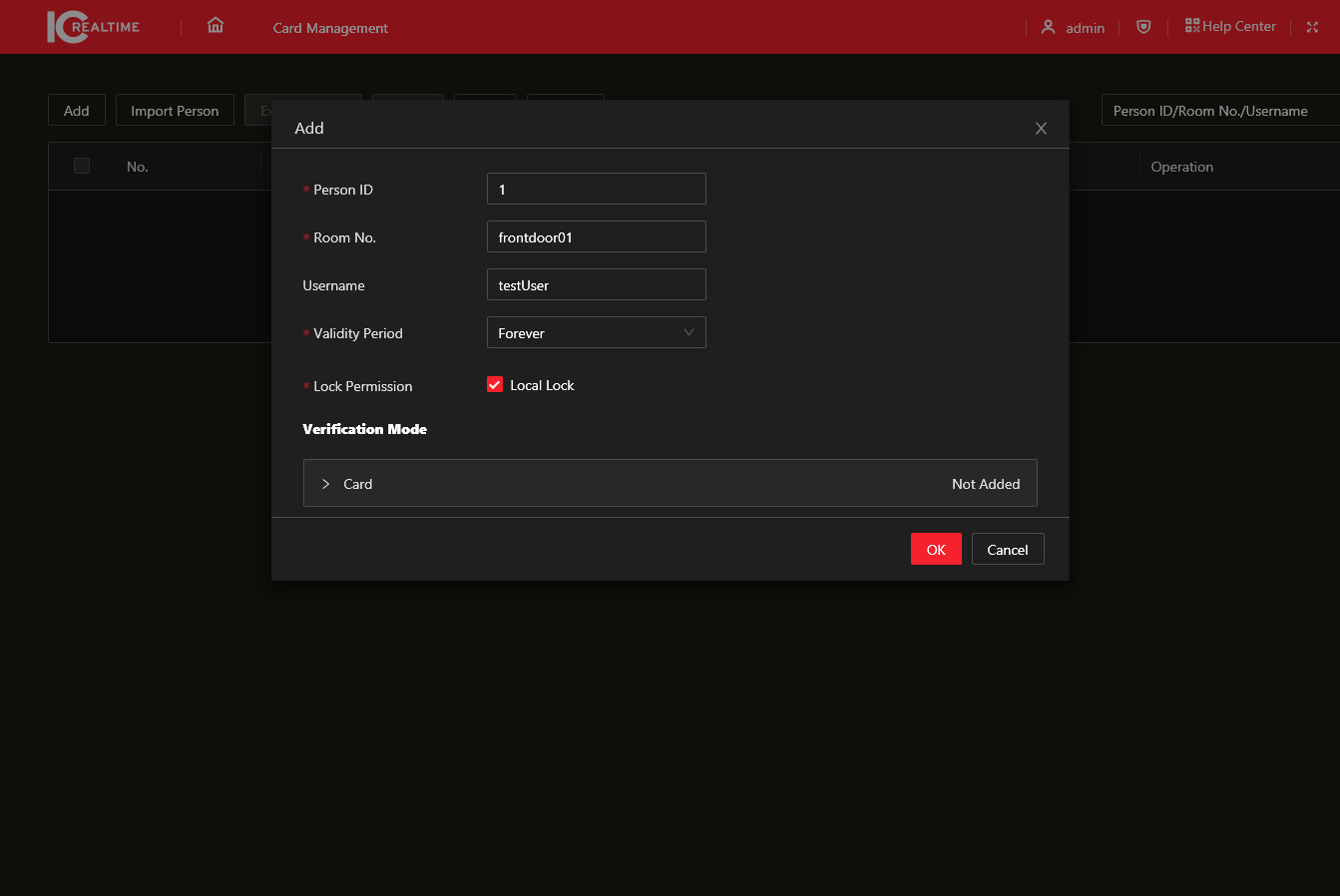

03. Click the "Add" button and fill in the required variables

Person ID	Must be numeric. Can be any number you choose to use
Room ID	Can be alpha-numeric, but cannot contain spaces, underscores, or dashes
Username	Typically the name of the person you are assigning access to
Validity Period	Options are "Forever" or "Custom". Custom allows you to set the start & expiration date of when the key card / fob will no longer function.
Lock Permission	Check the box for "Local Lock" to enable control of the lock connected to the Dinger Doorstation

(Click the thumbnail to view the full-sized image)

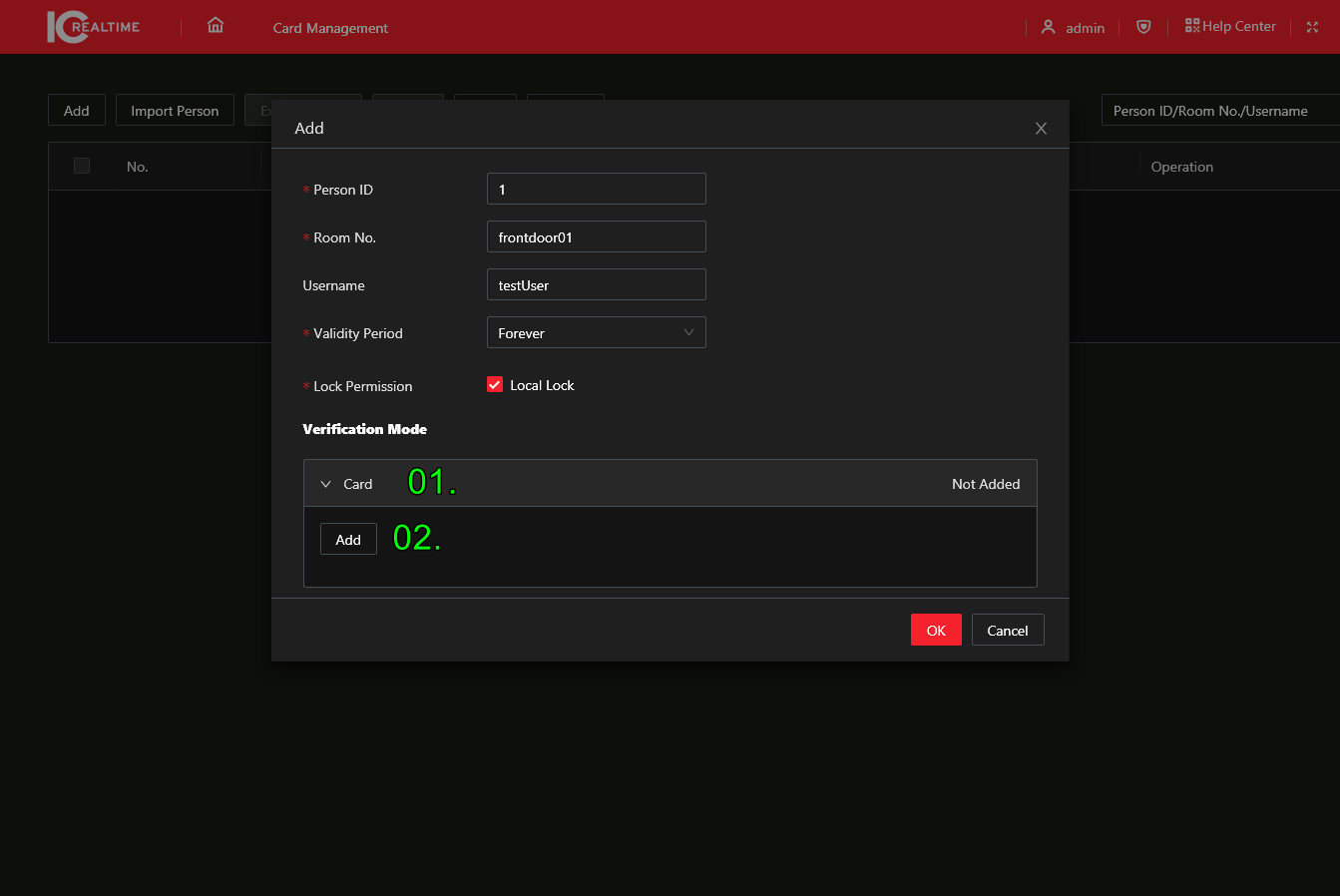

04. To issue a key card or fob click the "Card" category located at the bottom of the Add window & click the "Add" button

(Click the thumbnail to view the full-sized image)

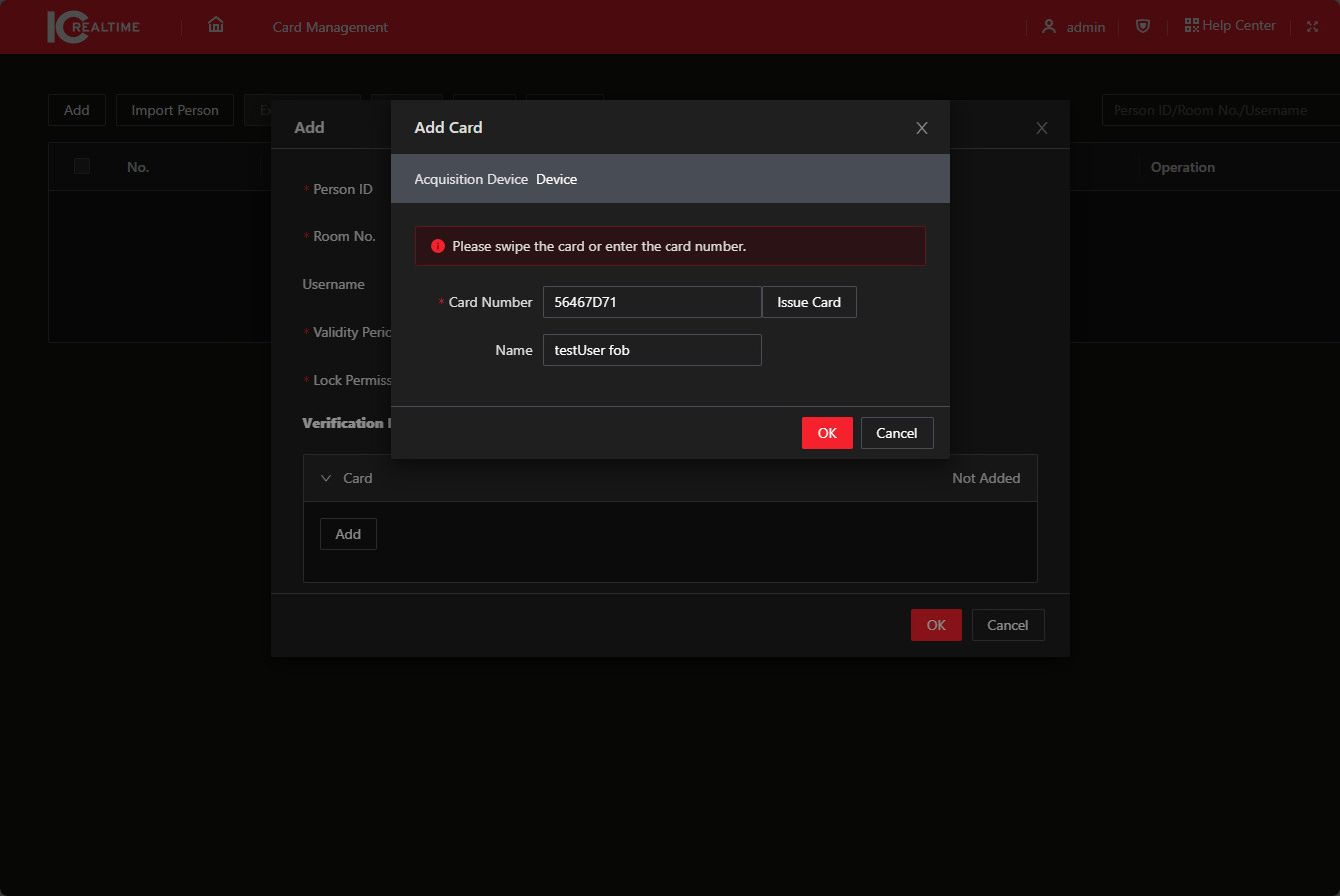

05. When the "Add Card" window appears you will click the "Issue Card" button, a 120 second countdown timer will start. Hold the keycard or fob 1 inch or less away from the scanner directly underneath the call button. If the scan of the device is successful a single beep will be heard and the card number of the device will have auto populated. Name the device and click the "OK" button. Click the second "OK" button on the original "Add" window to finalize the changes.

(Click the thumbnail to view the full-sized image)

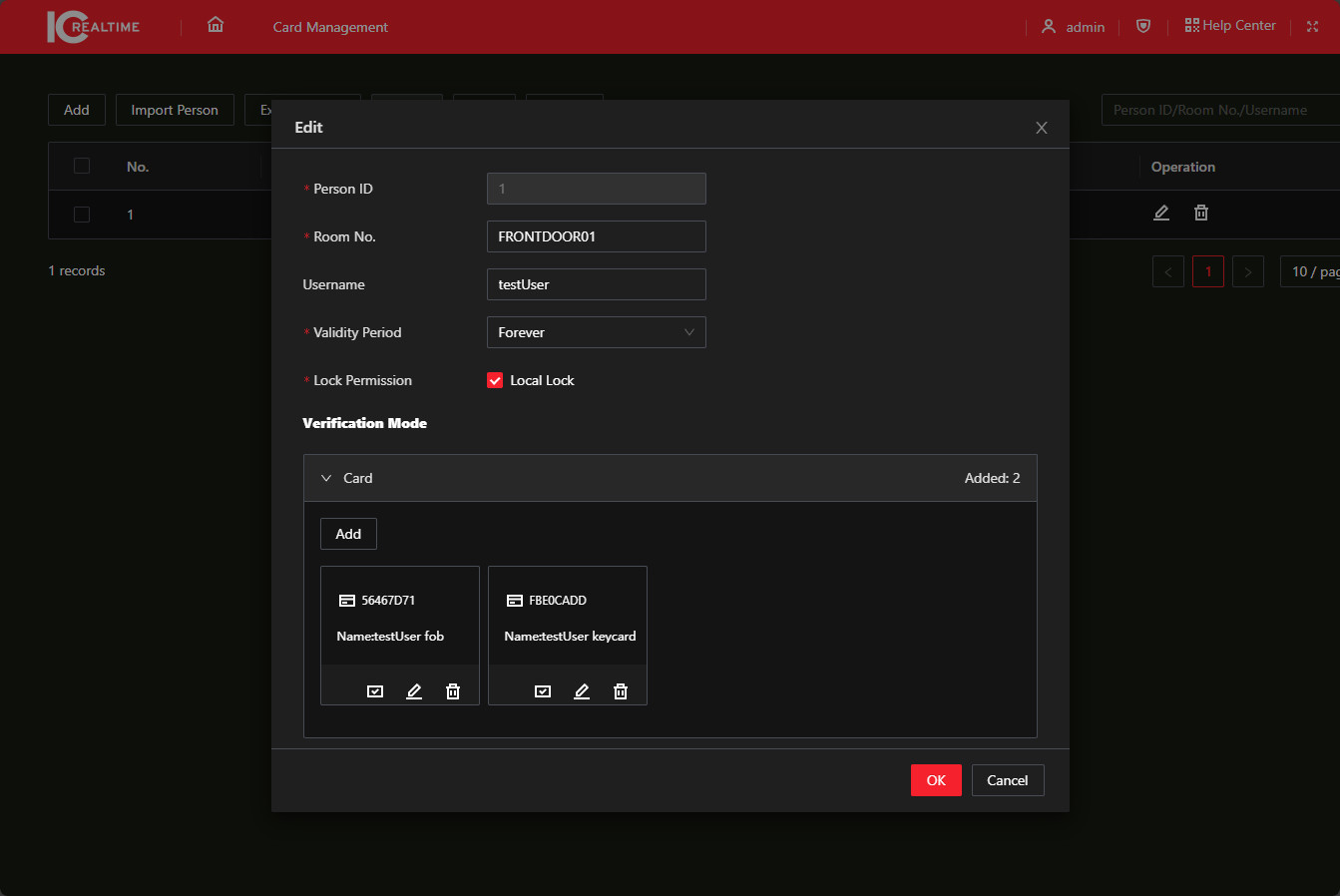

06. You can add multiple fobs and keycards to a single user by repeating the steps above.

(Click the thumbnail to view the full-sized image)

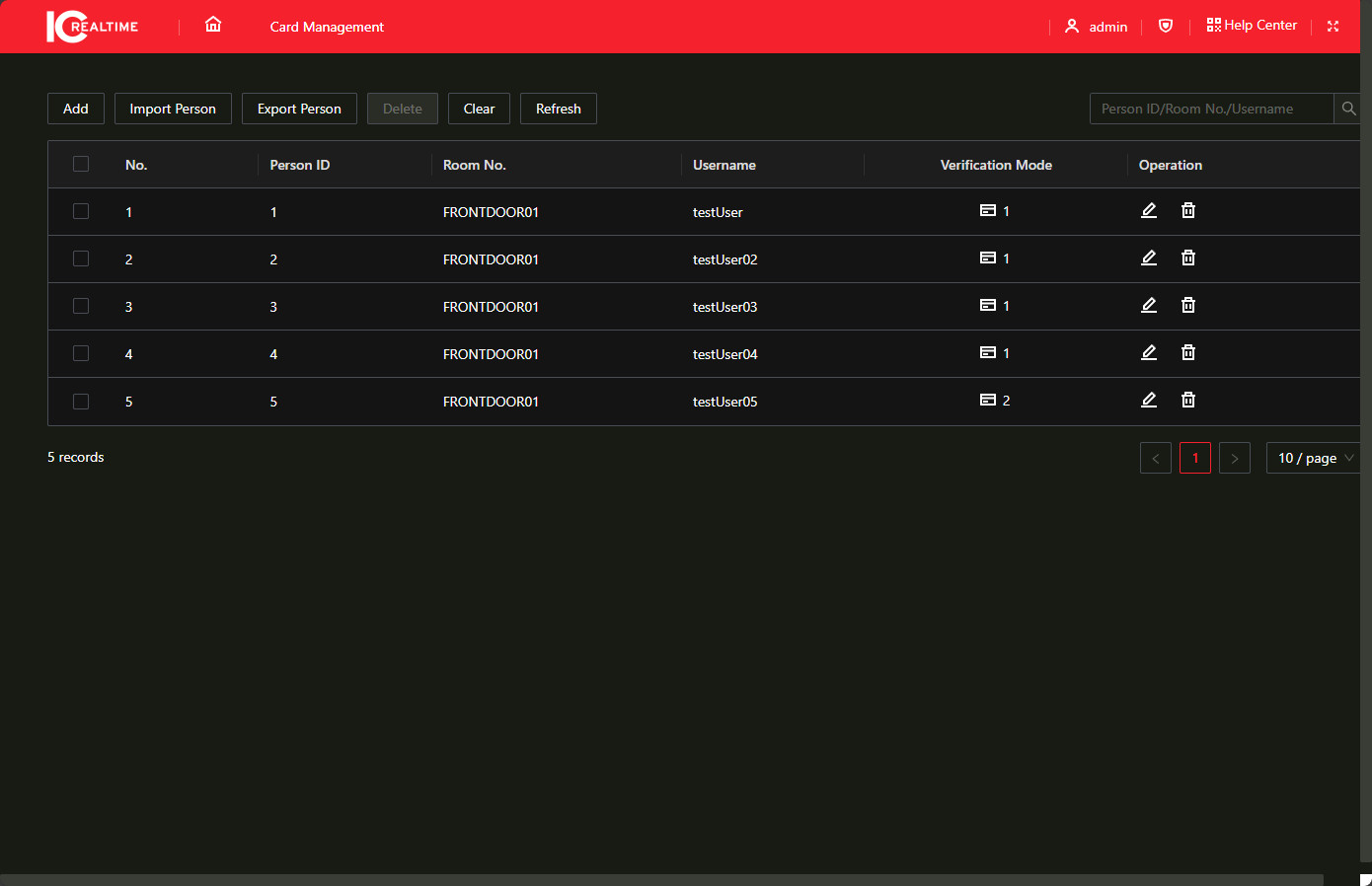

07. While you could assign multiple fobs and keycards to a group of individuals using a single user, this is not recommended. Best practice in a multiple user scenario is to create multiple users and assign their access keys individually. This will allow you to track entries into a building on a per user basis in the event of a security incident.

(Click the thumbnail to view the full-sized image)

08. After the changes have been saved and assuming the fob or keycard has been programmed successfully, you should now be able to hold the device up the Dinger Doorstation and receive an audible message saying "Successfully Unlocked" at which point the electric door strike or electromagnetic lock will disengage allowing entry on the premises.
