NVR Local Display Configuration - Live Mode

Please note NOT ALL RECORDERS SUPPORT every option detailed in this guide. The interface of the recorder will prevail.

Cameras will auto-populate displays in the default order (i.e. 1, 2, 3, 4, etc.) unless the camera sequence has been changed. For details on configuring the sequence refer to the Display Sequence Guide.

• By default upon booting your recorder and adding cameras you will have a live view of your channels in a grid in the maximum supported view
• For this example we will be using a recorder with 128 channels, which will load the first 64 by default
• If using a recorder with fewer channels the grid will be smaller and you will have view options corresponding to that model.
• To switch to the various display options simply select the layout you would like and select the channel or channels you would like to view

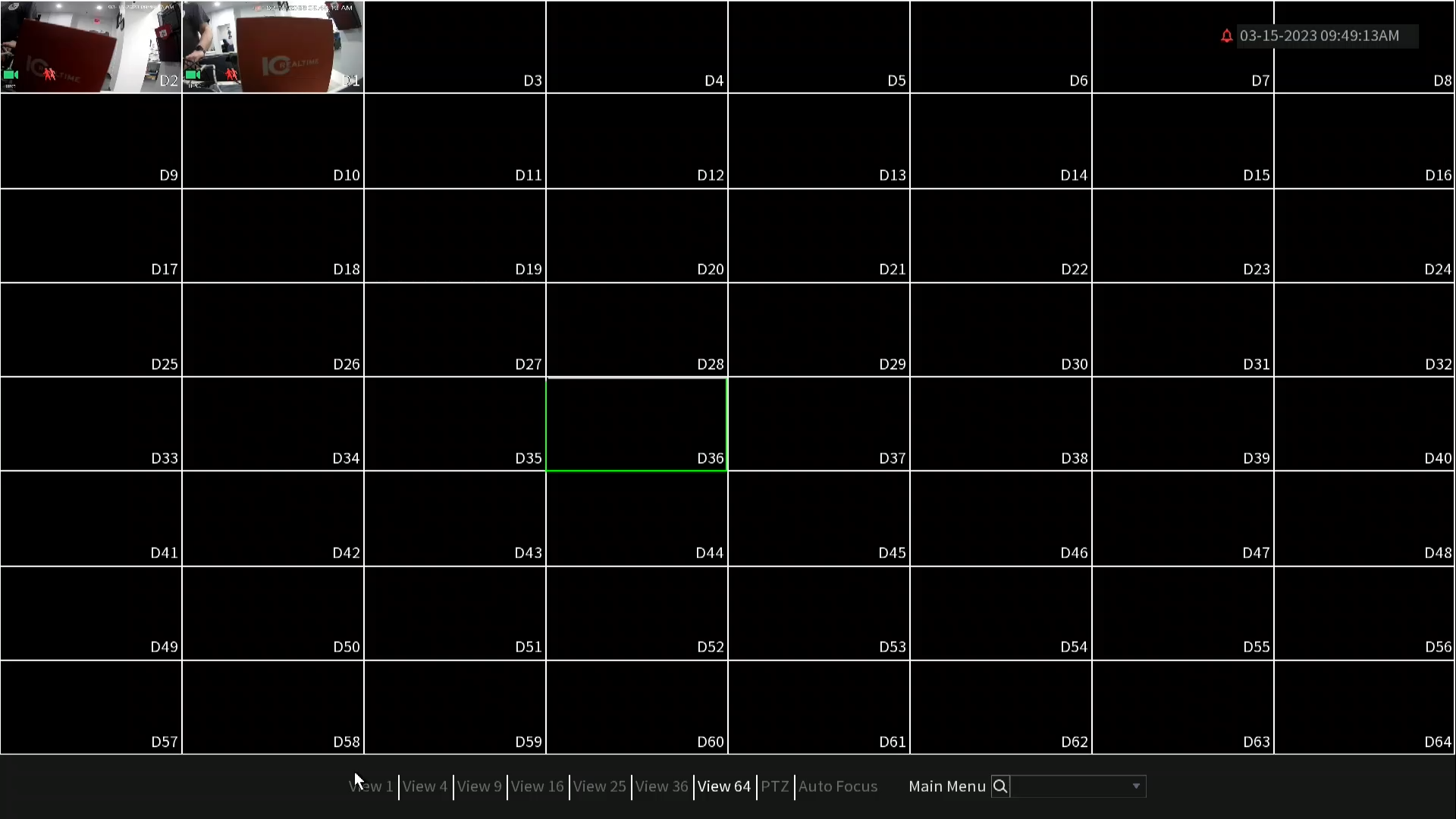

Default View - Live Mode

At any time during the operation of your recorder you can return to the default mode

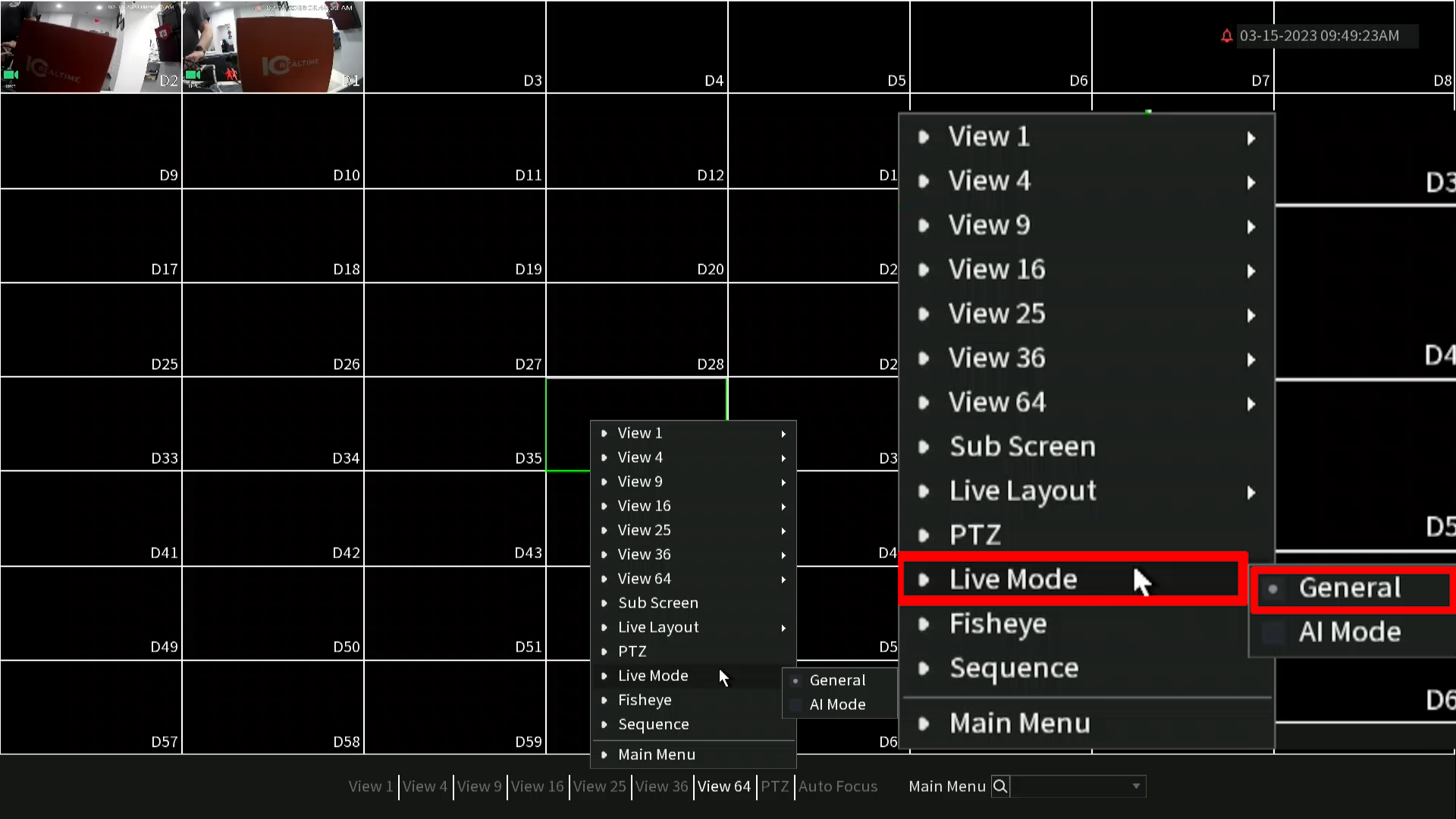

Right-Click > General Mode to return to Live Mode

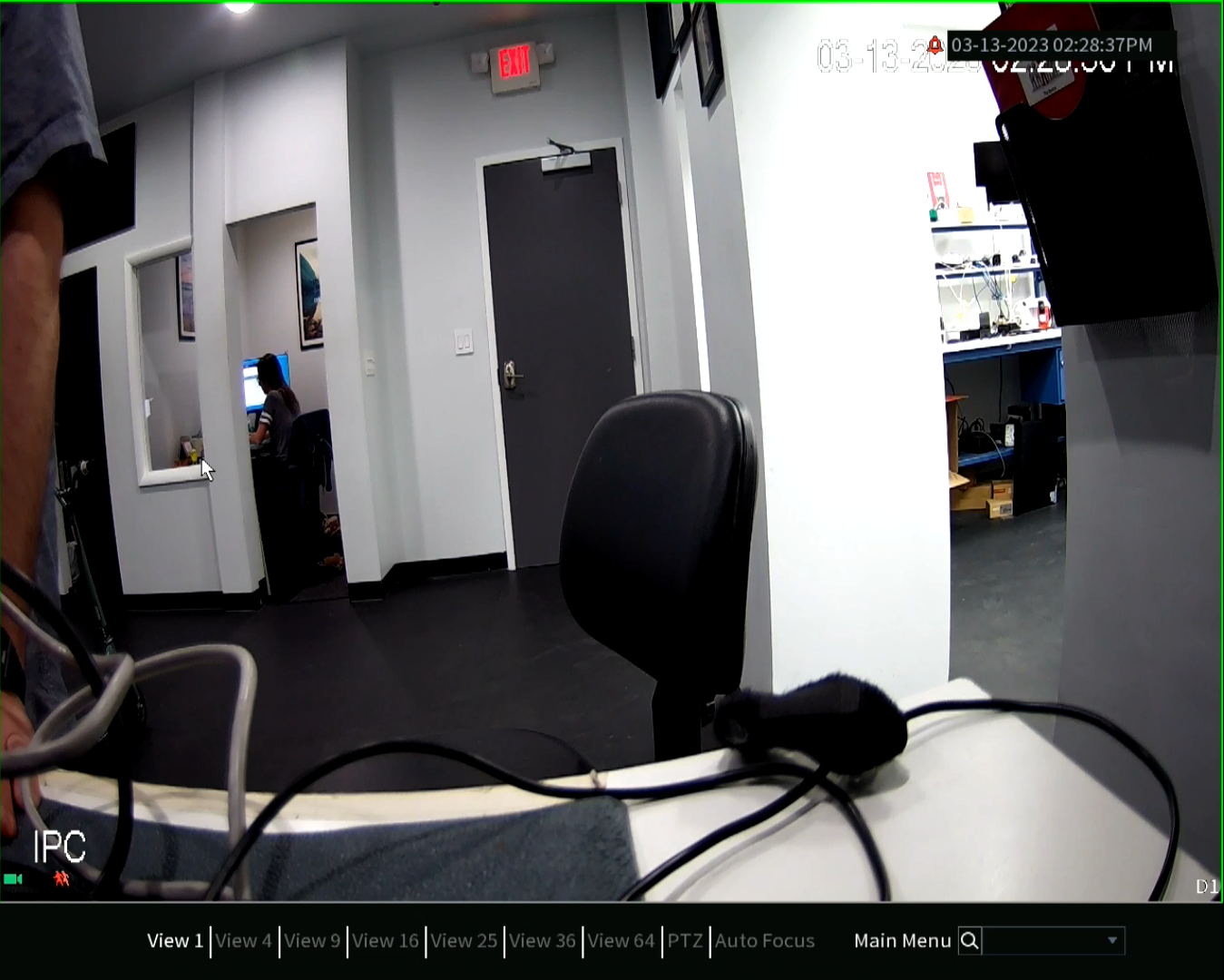

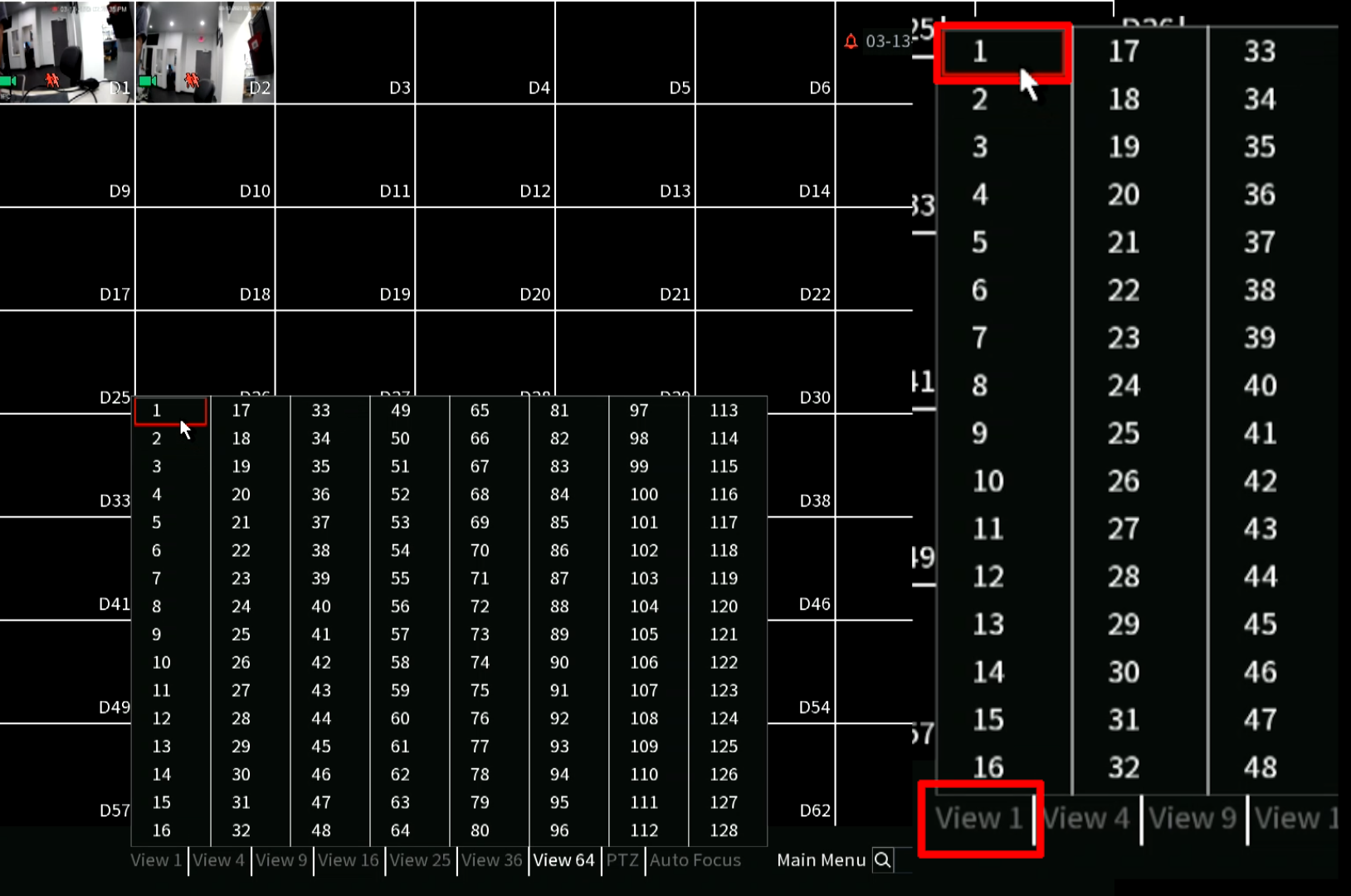

View 1 > Channel 1

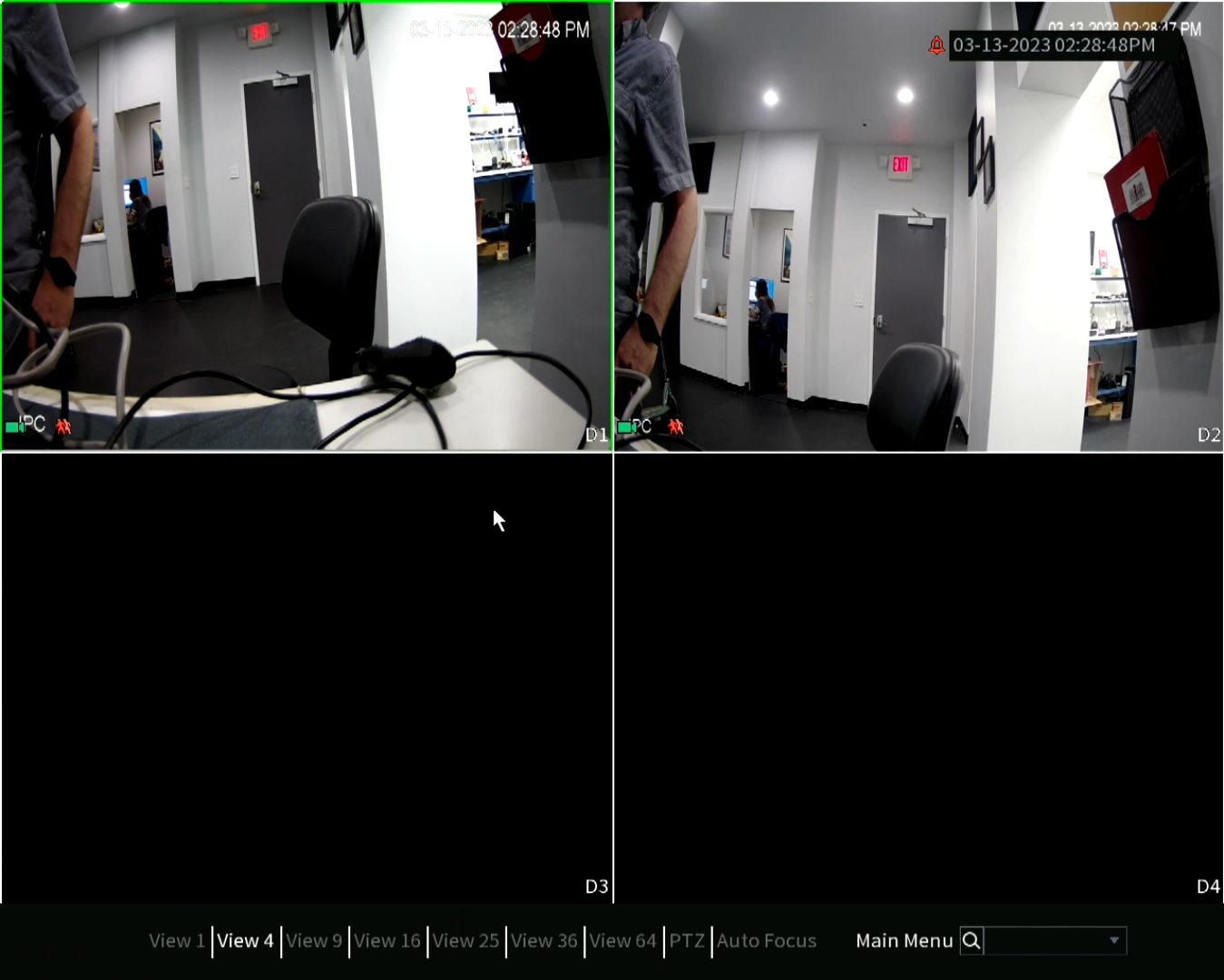

View 4 > Channels 1 - 4

View 4 > Channels 1 - 4

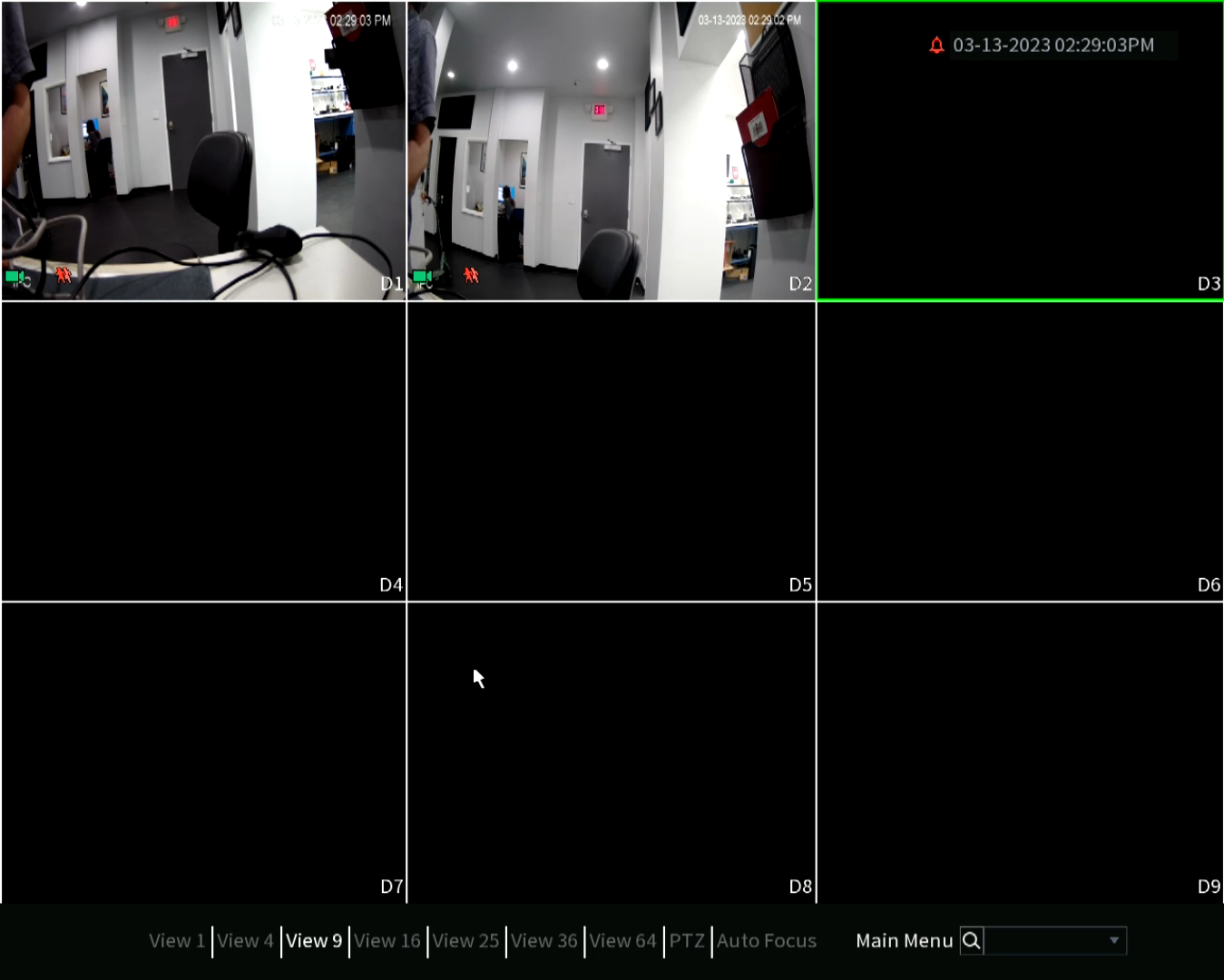

View 9 > Channels 1 - 9

View 16 > Channels 1 - 16

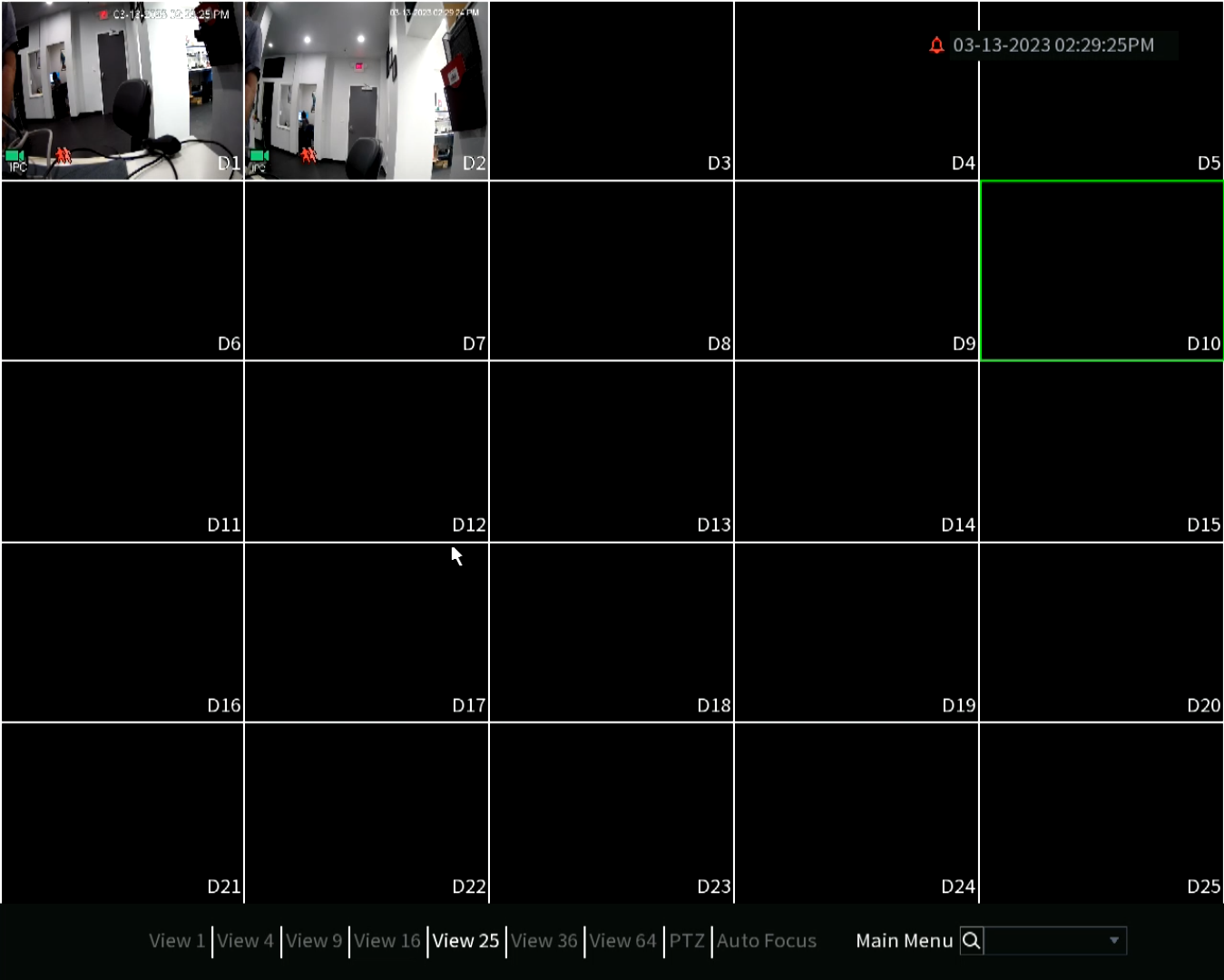

View 25 > Channels 1 - 25

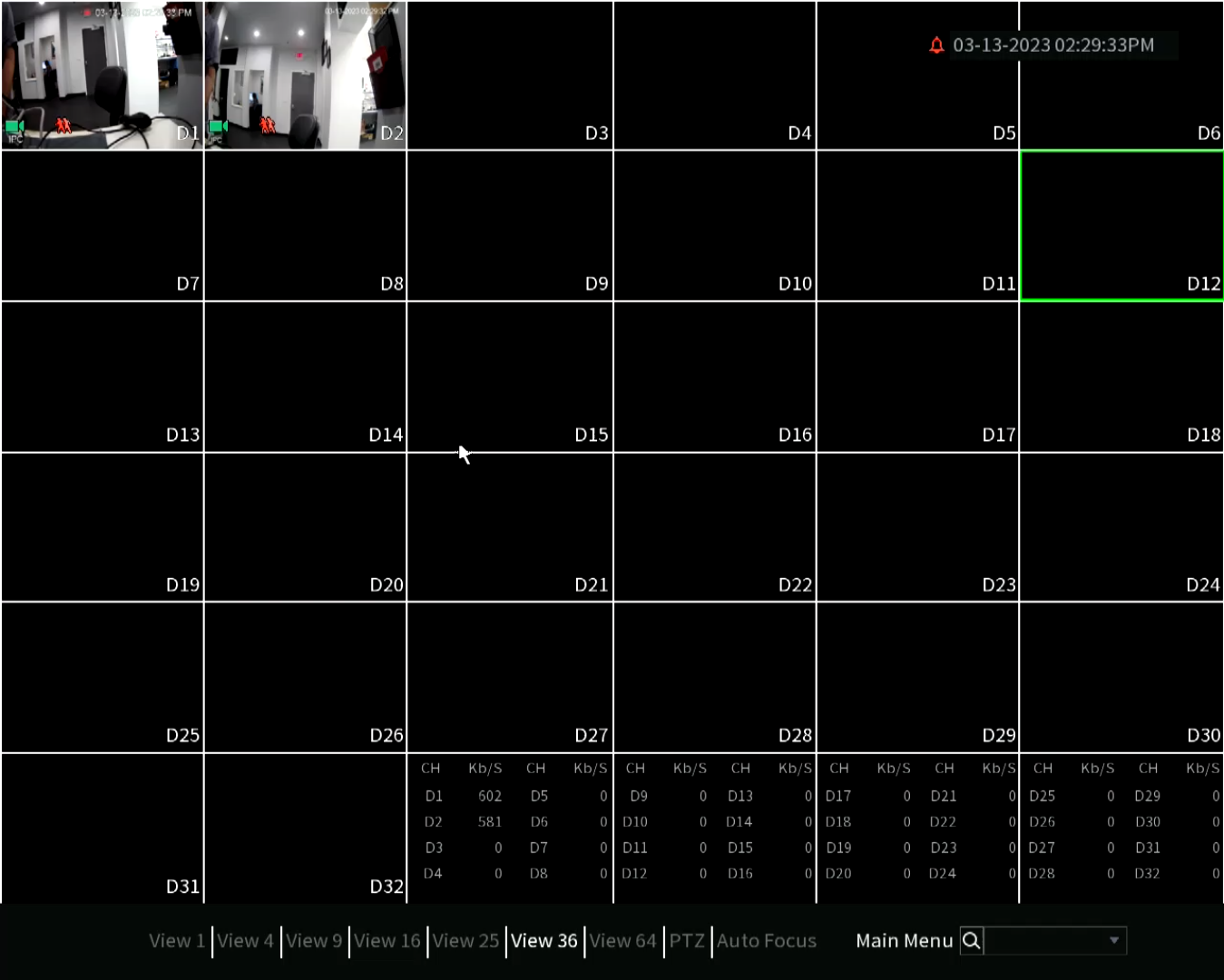

View 36 > Channels 1 - 36

View 64 > Channels 1 > 64
