IVS Rules In Newer 3.X Camera Firmware

This will briefly go over how to access the IVS settings in newer firmware. This includes but is not limited to:

• IPMX B40F ADW2
• IPMX E40F ADW2
• IPEL PB80F ADW1

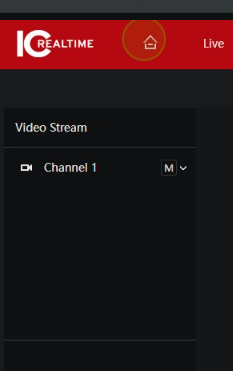

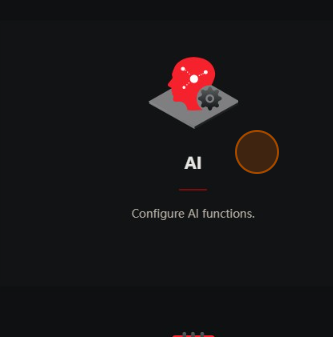

To access the settings in the newer style cameras we will click on the "" icon and select "AI"

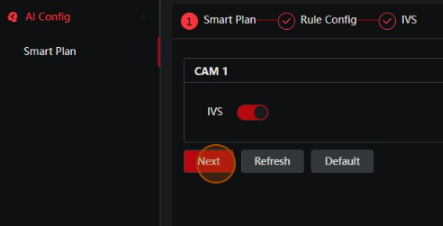

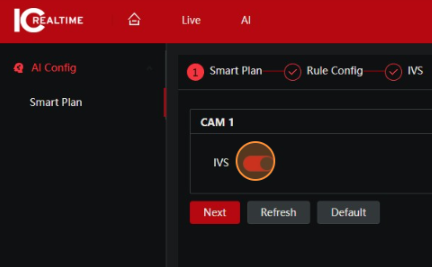

Click IVS to enable the cameras "Smart Plan" and click "Next"

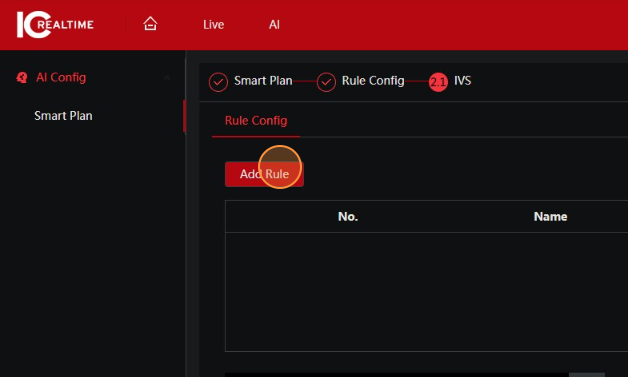

Click "Add Rule"

Select the rule type. For this tutorial, we will use a trip wire.

To learn more about IVS features click This Link

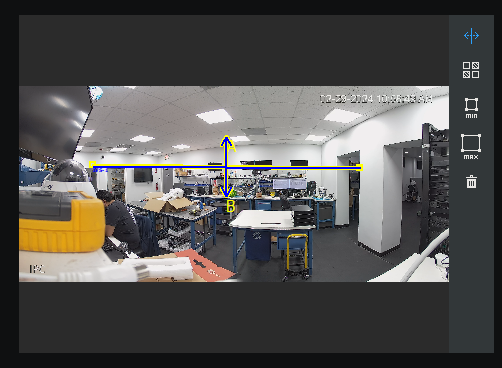

Draw your rule. Click here to learn more about IVS Rules and Recommendations

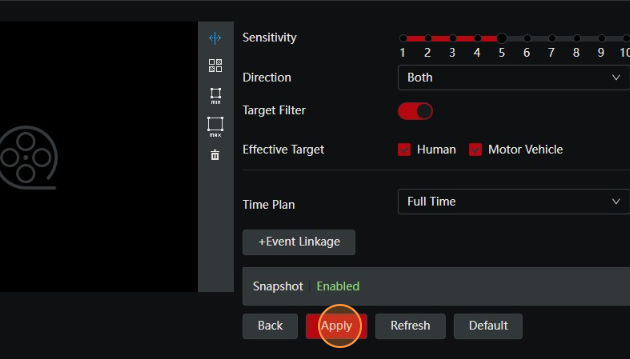

Select your desired settings and click "Apply"
