1. Login to the Web or Local interface of the NVR

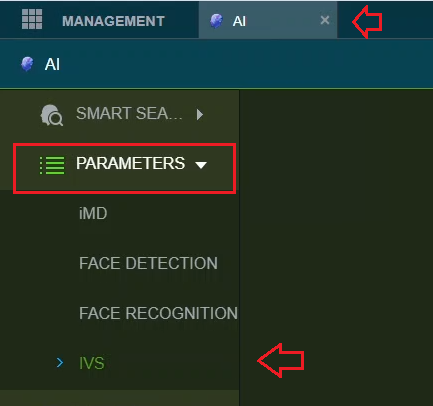

2. Go to main Menu then AI. Under Parameters, select IVS.
3. Enable AI Mode. Select the appropriate channel. (For NVRs, the IP camera must support perimeter protection)

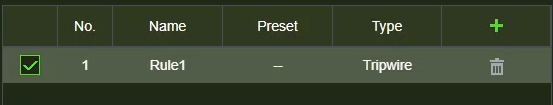

4. Click on "+" next to type to add a rule. (See here for more information on IVS rule creation: Intrusion or Tripwire)
- Enable: This toggles the rule on/ off)
- No: Rule number
- Name: You can change this parameter to identify rule
- Preset: If using PTZ, this will show the preset being used.
- Type: You can select different type of rules such as Tripwire or Intrusion
- +: Click this to add a rule

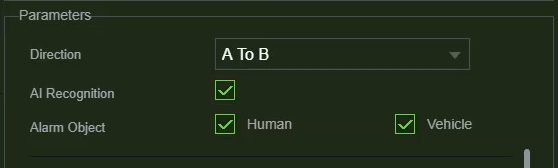

5. Parameters:
- Direction: You can choose the direction of the object which it will trigger the rule.
- AI Recognition: Enable this to allow AI to filter objects.
- Alarm Object: You can enable the IVS rule to only trigger object types: Human only, Vehicle only, or both.
