Streambox Guide and Configuration

This article will cover setup and configuration of the Stream Box.

Required items needed are a Monitor, Mouse and Laptop

Components

Set-Up

Credentials:

To initialize and setup your streambox use the default credentials

username : admin
password : admin

• To change the credentials go to settings -> account manage -> modify password

Network:

• Click on Main Menu > Network

• The stream box will be on DHCP by default or can be enabled as shown below
• To assign a static IP uncheck the DHCP box
• The advanced tab will show port numbers such as TCP, HTTP as well as others

Date & Time

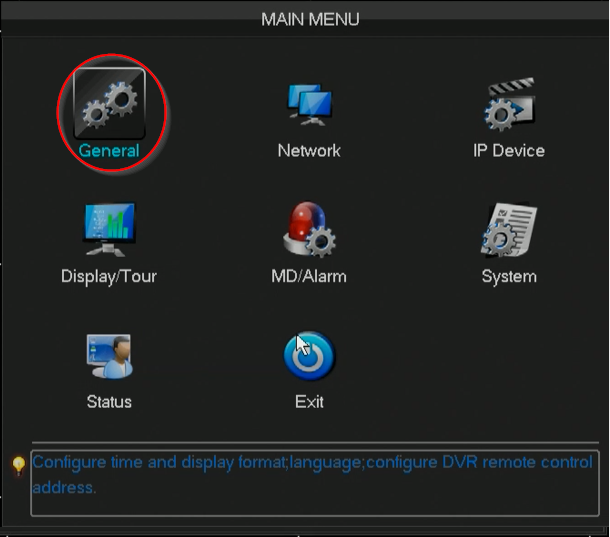

• To set the date, time and time zone navigate to General

Adding Cameras

• For optimal setup stream box and cameras will be on the same network
• If you are experiencing performance issue and cameras are added via connection from the streambox to the recorder move the cameras to the network and directly connect

• From the Live View page right-click
• Select Remote Device
•

  • The most optimal setup is the cameras being on an external switch

• After selecting Remote Device you will be brought to camera configuration page (Shown in picture below)

• In the picture I have highlighted some key points
  • Click the search button and if you are within the same network of the cameras they should populate
  • On the bottom of the page you can click the filter box and it'll pull up different options
    • The 3 dots signify all manufacturers or you could specify the manufacturer that you're solely trying to see
  • Once you are ready to select your cameras you can click the box on the left hand side and then click add

• If you add the cameras and they show the status above or red status  you can check the live view to verify the problem and troubleshoot accordingly
• Once you've properly troubleshooted you should see feed a green status
• While adding cameras you can change the channel by selecting advanced and selecting the channel you want a specific camera.

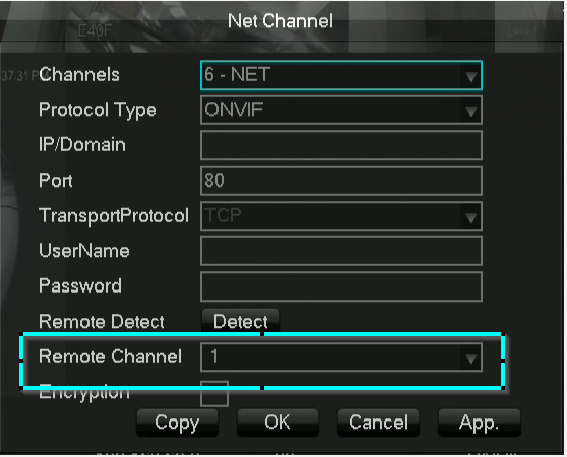

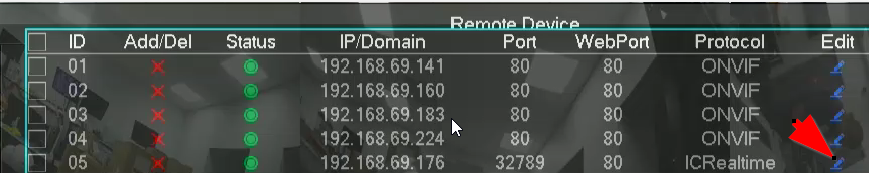

• Adding a recorder with multiple channels: This requires you to use Remote Channels. Edit the existing connection and change the Remote Channel to the camera you need, as shown in the pictures below
