This will be a in-depth guide on every legacy NVR and DVR hardware and networking interface on how to enable P2P for your NVR. Please refer to This Link understand which method we will be using.
Network Method
This will be a detailed guide for our legacy recorders it will specifically go over older 3.x and legacy 4.x user interfaces. All of these images are directly from the Network Method listed on: This Link
Legacy NVR's utilized older web browser rules that are no longer in use. In order to access these older systems over the network, a PC with Microsoft Edge in IE mode will be required to enable plugins.
This guide will assume all settings have been enabled and installed and you are able to login to your NVR via the Network Method.

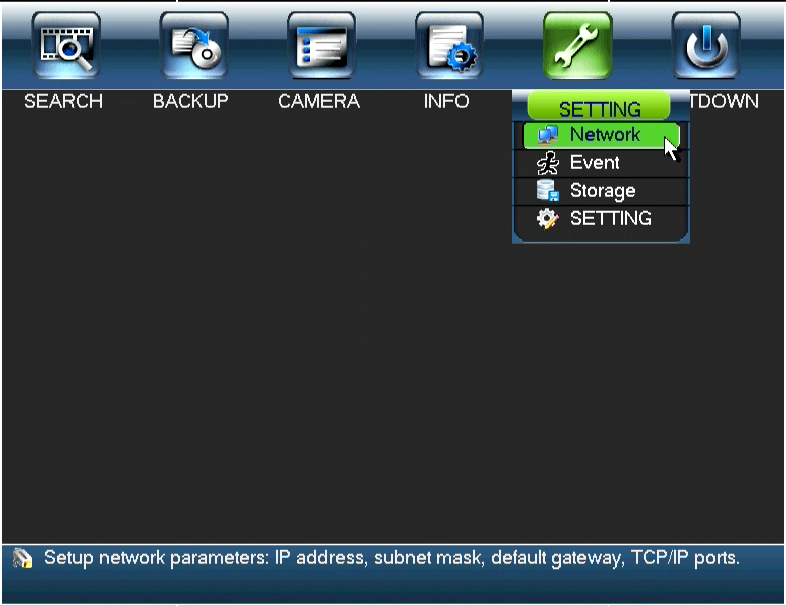

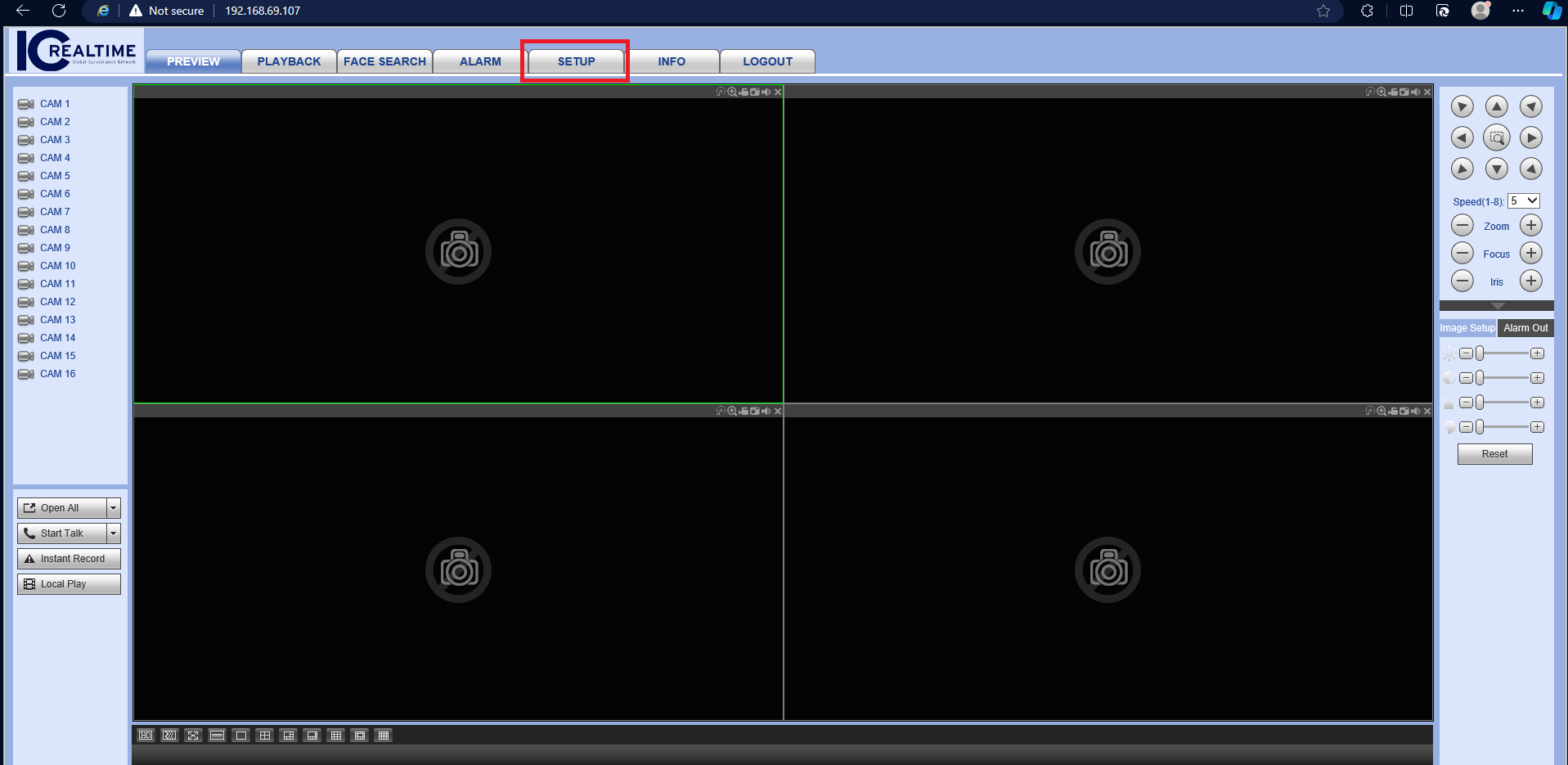

- Select "Setup"

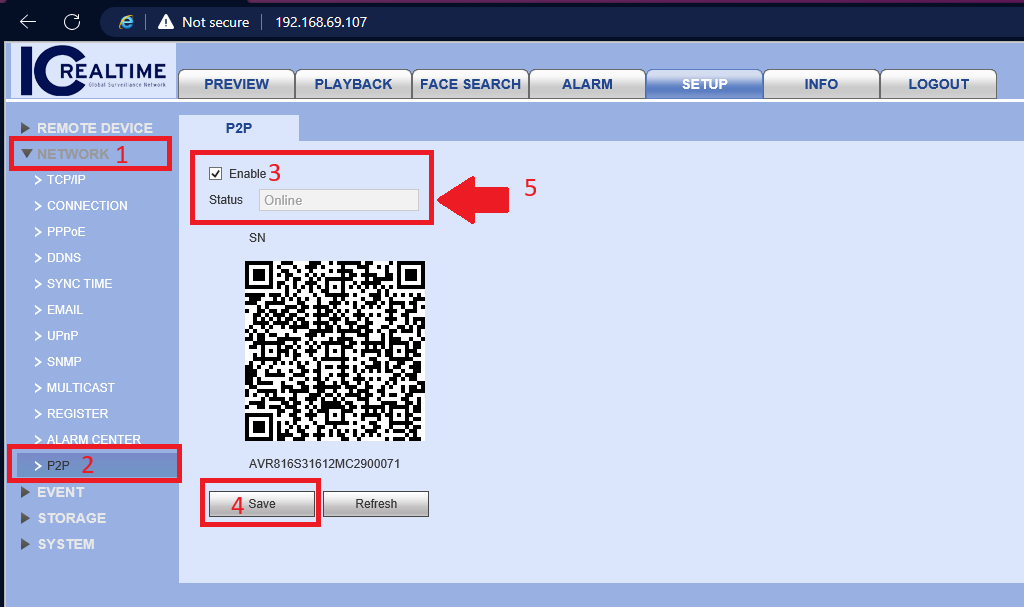

From the Settings Menu, navigate to: Network ->P2P -> Click "Enable"-> Click "Save"
- Lastly, verify the status states "Online -OR- Connected" if it does we can continue with:
Other Location

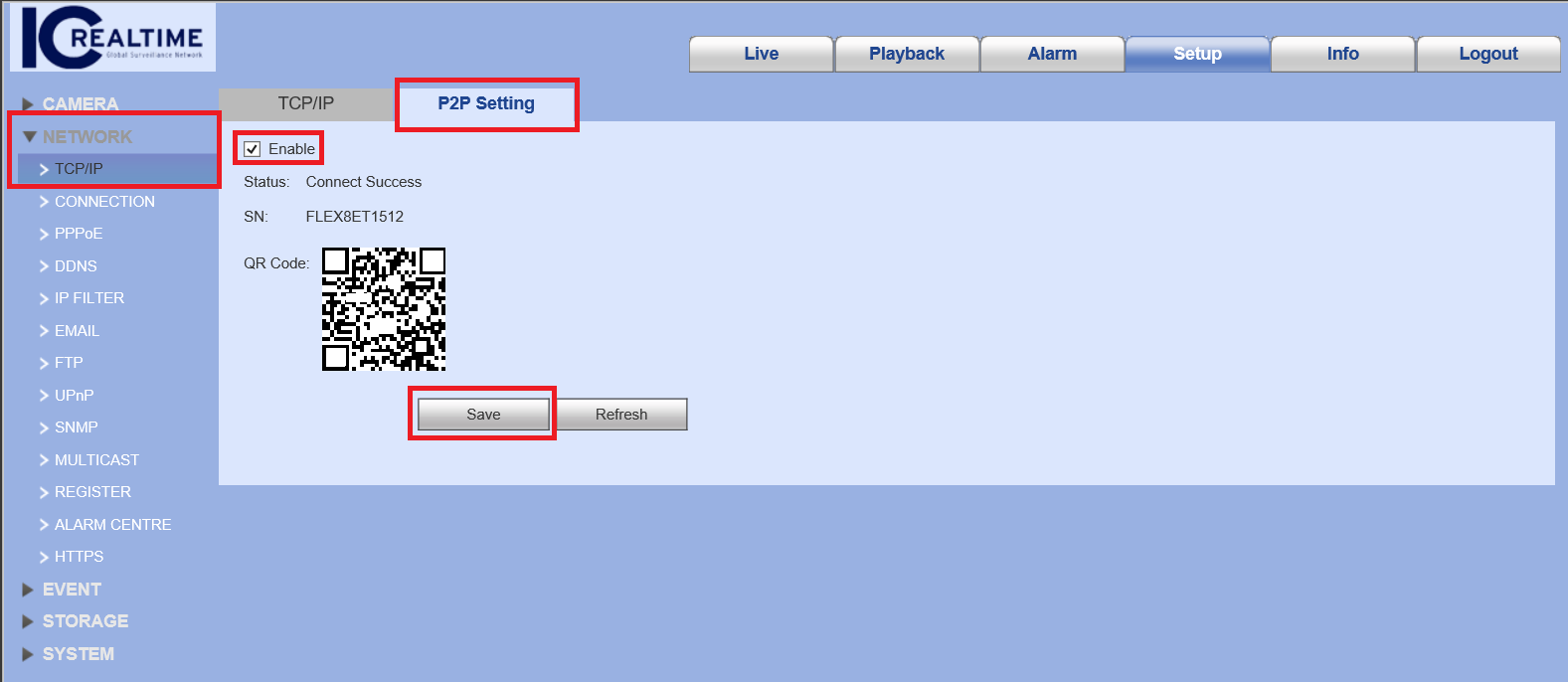

In older legacy systems from around 2014 & 2015, we can also find P2P settings in TCP/IP in:
Setup -> TCP/IP -> P2P Setting Tab -> Click "Enable"-> Click "Save"
- Lastly, verify the status states "Online -OR- Connected" if it does we can continue with:
Hardware Method
This will be a detailed guide for our legacy recorders it will specifically go over older 3.x and legacy 4.x user interfaces. All of these images are directly from the Hardware Method listed on: This Link

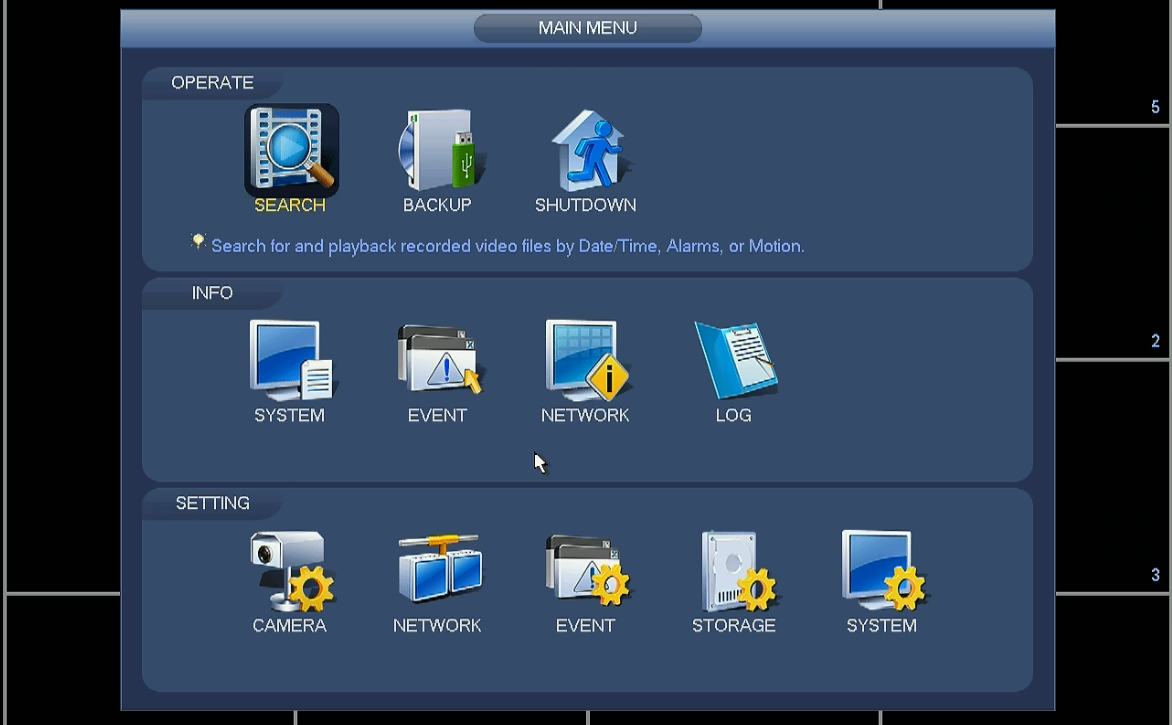

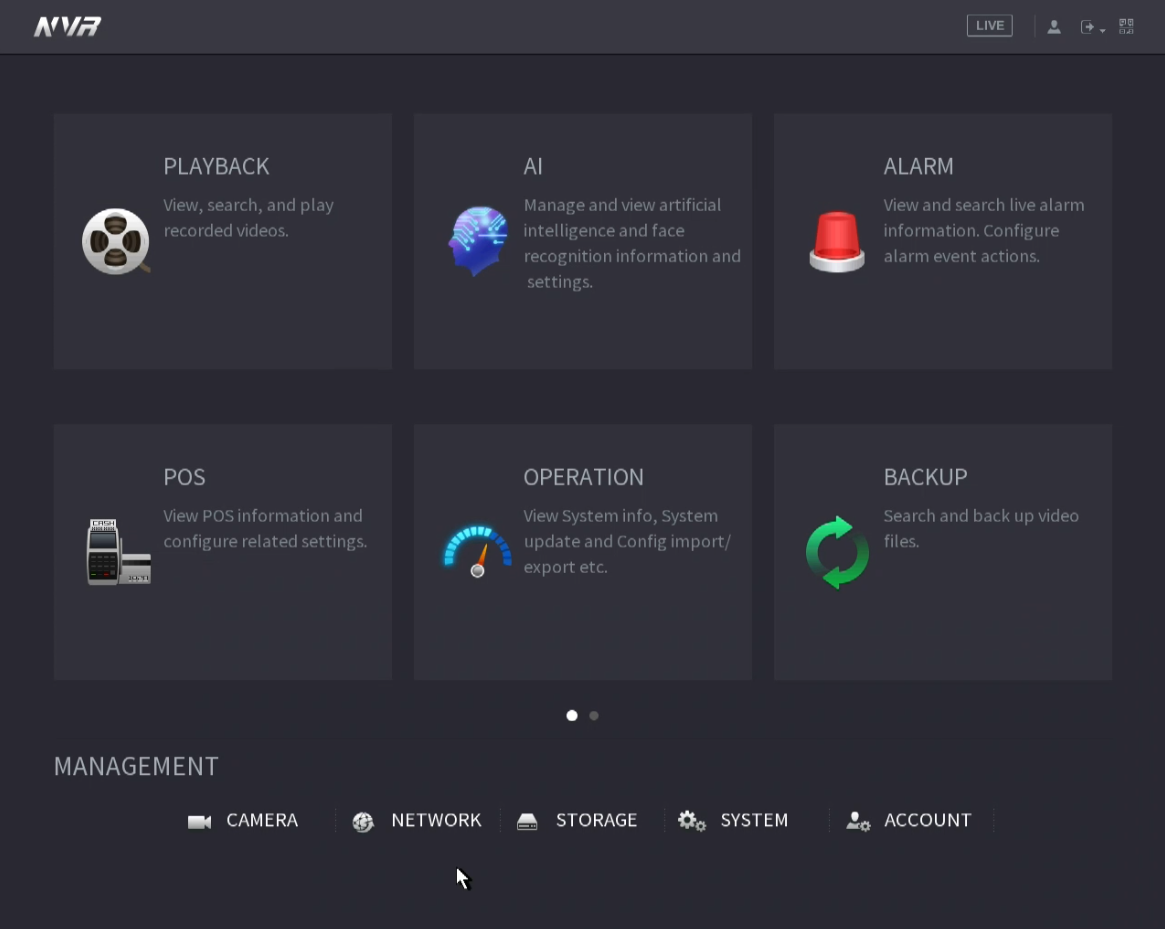

Select your NVR from the provided Firmware Version list. If you are not familiar with your firmware version. Select the screen that matches your Main Menu.
Select your interface:
3.x NVR
3.x DVR
4.0 Legacy
