This article will cover how to set up a recording schedule through the local monitor of your recorder. We'll be covering legacy recorders, Firmware Version 4.0. If you have a legacy recorder V3.X or a newer recorder V4.0, you can find instructions with one of the links below:
- Recording Schedule: Legacy Recorders 3.X (Local Monitor)
- Recording Schedule: Modern NVRs V4.0 (Local Monitor)
ICRealtime recorders come defaulted to record continuously 24/7 and the hard drive is set to overwrite the oldest footage once the drive is full.
Here we'll cover setting up a recording schedule for motion/intelligent motion detection, but the same rules will apply to recording IVS rules such as trip wires and intrusion boxes. Whichever you choose, you'll need to ensure these are enabled and configured correctly in order for the recording schedule to function properly.
To set up Motion Detection, Intelligent Motion Detection, or IVS rules, see the following links:
- Basic Motion Detection / Video Detection
- Intelligent Motion Detection
- IVS Tripwire
- IVS Intrusion Zone
Legacy Recorders V4.0

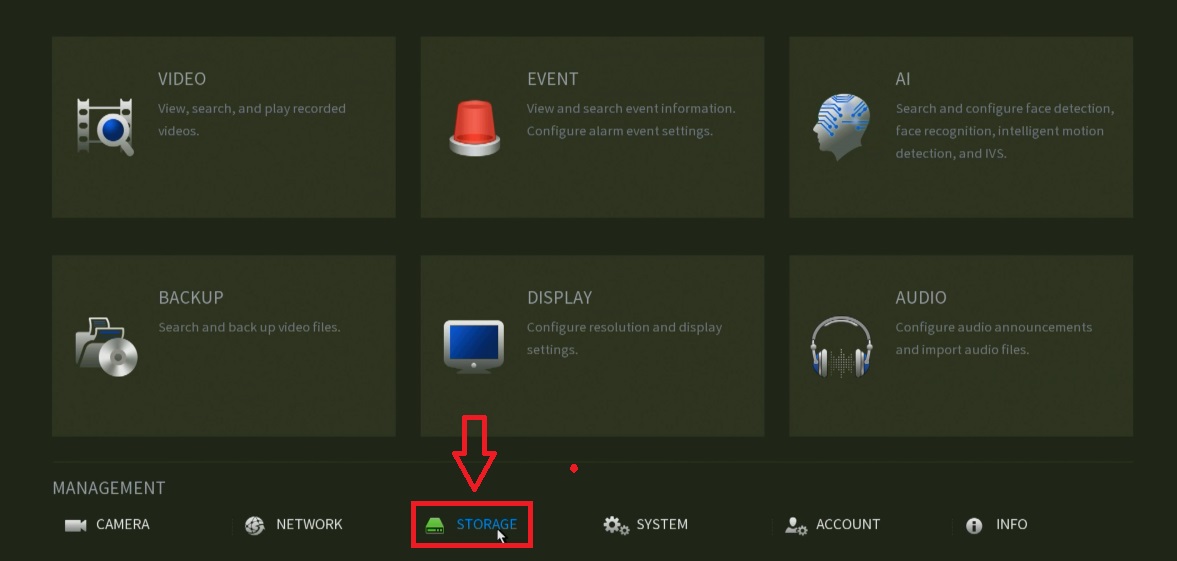

1. From the Main Menu of the recorder, click 'Storage."
2. Click 'Schedule,' then change the Channel option to 'All' to push the configuration to every channel, and then click the on the 'gear' icon on the right.

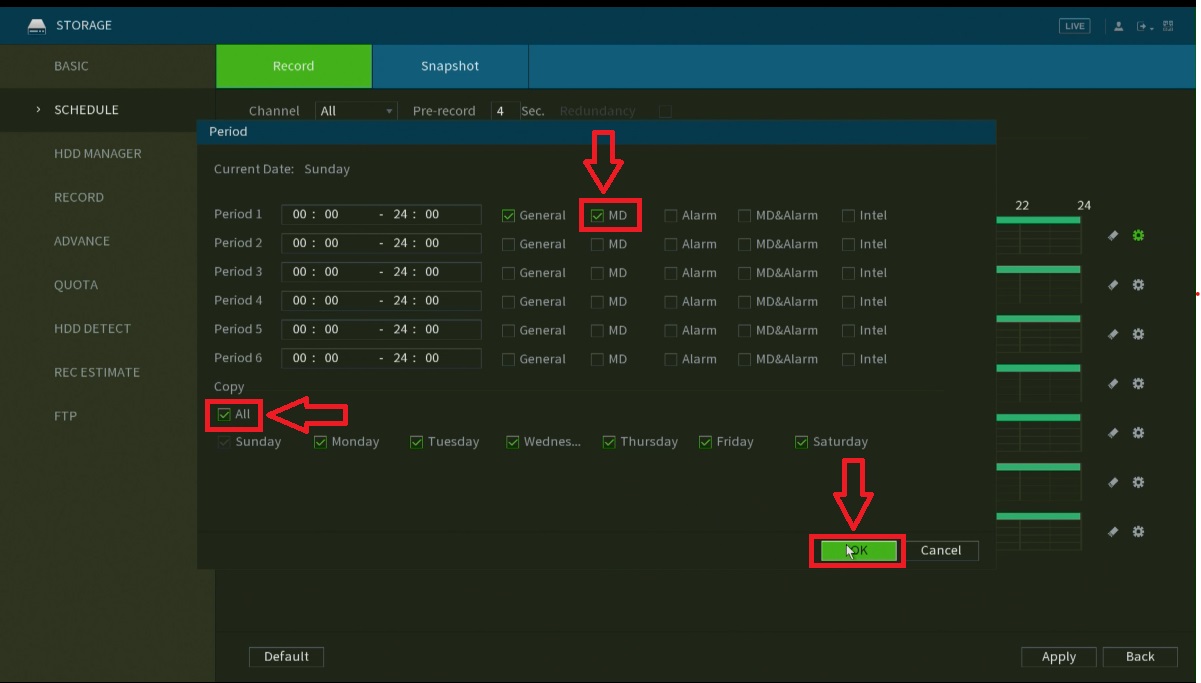

3. In the window that opens up, select the box for 'All' to select each day of the week, and the box for 'MD' for Motion Detection (For tripwires/intrusion boxes, select the box next to 'Intel'). Then click 'OK.'
4. The recording schedule will now reflect the changes made. You'll see a yellow bar indicating Motion Detection running along the length of the time bar for each day. Click 'Apply' to save the configuration.
