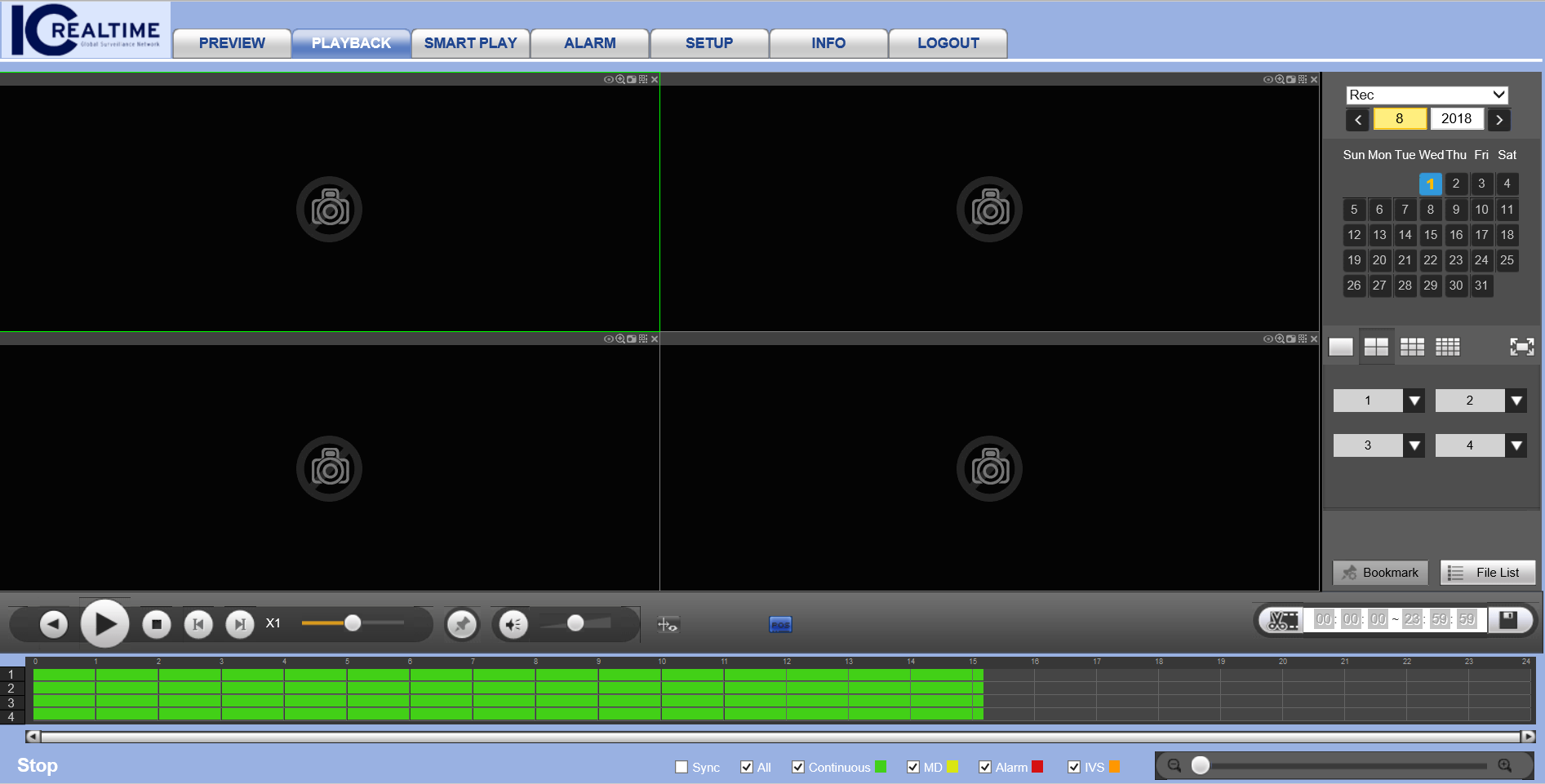

Playback is used to view recorded footage. In the web interface select the playback tab to get to playback.
Search:
To search for footage you would need to first select what day you are pulling playback from. After selecting what split you would like to view your cameras in, for instance, if you are trying to see 3 cameras, you can select the 4 split box. On the bottom, you will see a timeline that should behave recording. Depending on if you are recording on constant (Green), motion (Yellow), alarm (Red) or IVS (Orange) recording it will show a different color. At the bottom of the page, you will have a 24 hour time stamp. Click the time period you would like to view. In order to get to a more specified time period, you can do this by zooming in the time period bar with the use of the magnifying slider at the bottom right.
Saving Playback:
1. Click the scissors icon, then enter the start and end time in the bottom right section “to and from”. Once the time is entered, click the floppy disk icon to download the footage.
2. The file list is an alternate way to search and download footage. To the right of each file, there is an M or R to differentiate recording types (Motion or Regular).To download the footage, select the box then click download. All the downloads are saved in C: Drive then “RecordDownload” by default.
