NVR EPTZ Local Preview

This article will go over how to preview your EPTZ setup.

Please note: This will not record to the NVR in a EPTZ split view. The NVR will always record the raw video footage only.

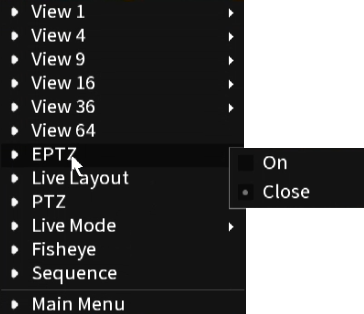

Right click the live preview on the NVR and select "EPTZ"

On: If the channel does not support EPTZ, the NVR will display "This channel does not support EPTZ."

If the channel supports EPTZ, the device will enter the EPTZ preview according to the EPTZ configuration we setup earlier.

Close: Disables the EPTZ mode. Disabled as default

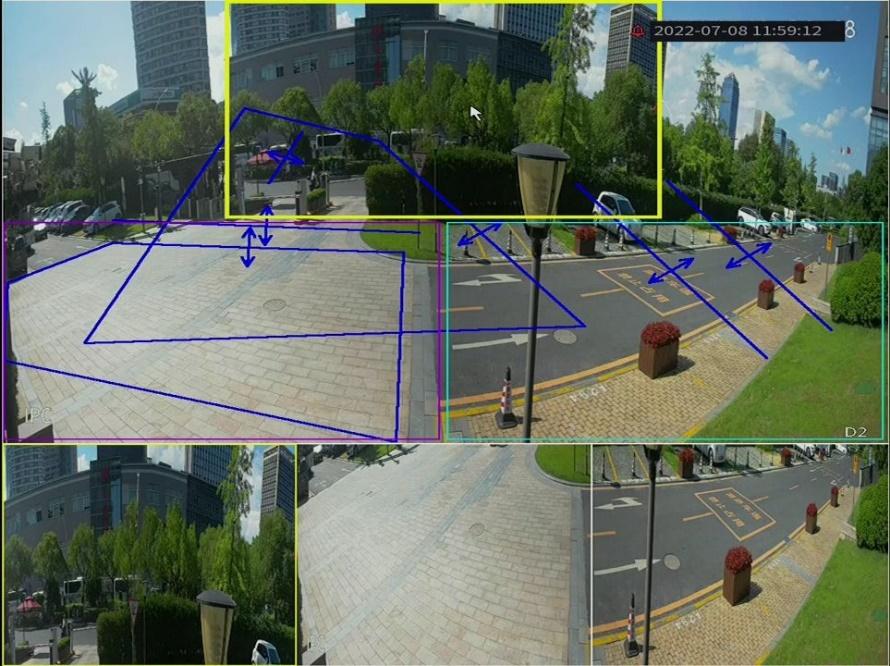

• Enable EPTZ (take 1+3 mode as an example)

When linkage tracking is not enabled or no event is triggered, the preset scene is displayed in split channel.

When the mouse pointer moves to the preset frame or split screen window in the panoramic picture, the frame in the panoramic picture will be displayed in bold and the corresponding split screen window will be highlighted. (Dragging and zooming are not supported, however)

When an event is triggered, it will keep tracking the object in the configured area. The tracking duration depends on the settings made. Once the configured timer ends, it will return to its original position.
