Crestron Home: NVR OSD Control Driver

Disclaimer: Before moving ahead with the following steps, it's expected that the Crestron Processor, source devices, and rooms are already configured.

This article will be a guide on how to pair the OSD Control Driver to an NVR in Crestron Home.

For guides on pairing the NVR Event Management driver or adding IC Realtime cameras to Crestron Home, click the links below:

• Crestron Home: NVR Event Management Driver
• Crestron Home: Adding IC Realtime Cameras

Note: For integration we recommend creating a new account in the NVR and each individual camera.

OSD Control

Note: For this configuration, a source route from the TV to the IC Realtime device must be setup.

1. Navigate to the Pair Devices screen and select a room. Then under the Device Types menu select Drivers.

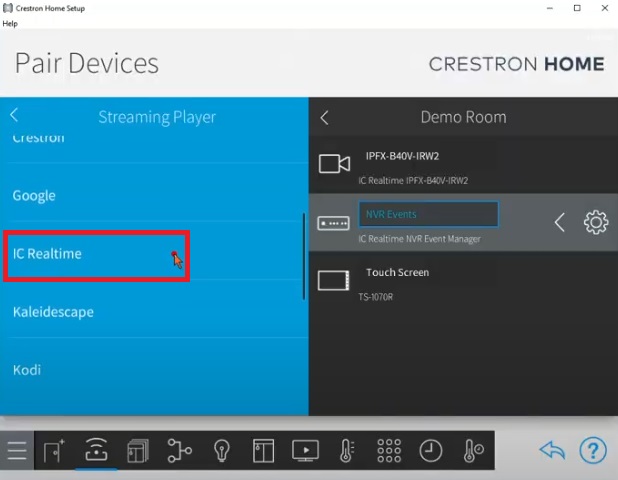

2.  Select Streaming Player>IC Realtime

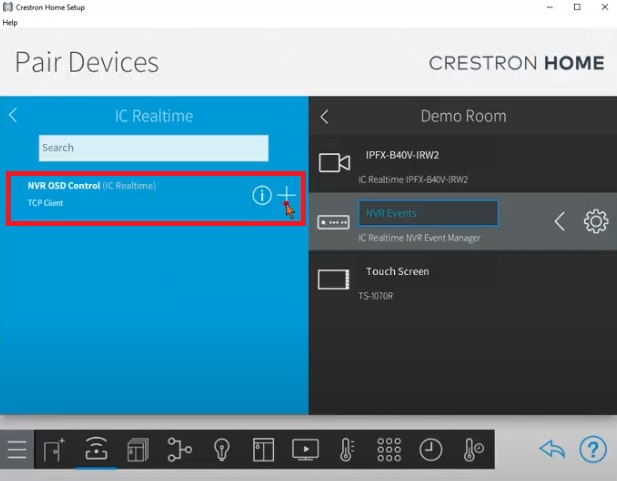

3.  Select NVR OSD Control and hit the + symbol.

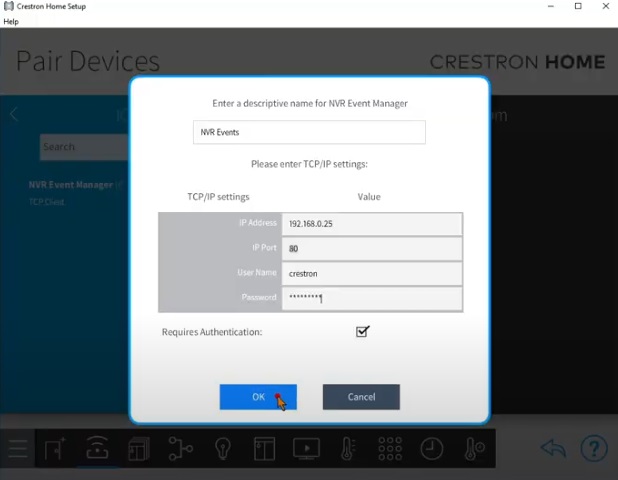

4. Enter a name for the NVR OSD Control, the IP address of the NVR, and the login credentials for the NVR, and click Ok. Note: The IP Port will be set to 80 and in most cases should not be changed. And if there is no User Name/Password boxes listed check the Requires Authentication box.

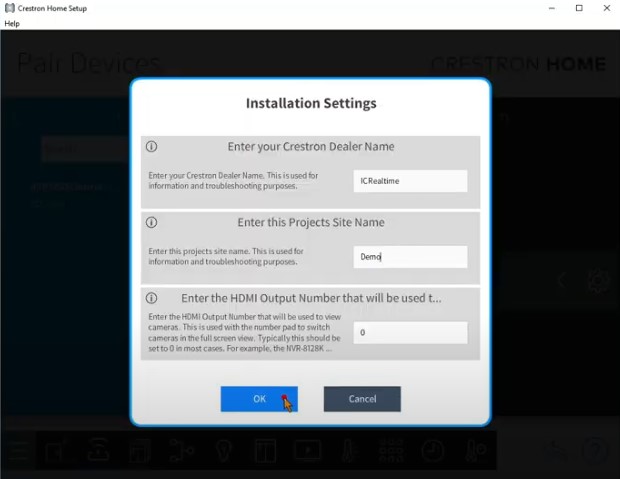

5. Next you'll be asked to enter your Crestron Dealer Name, the Project's Site Name, and the HDMI Output Number. Select Ok.

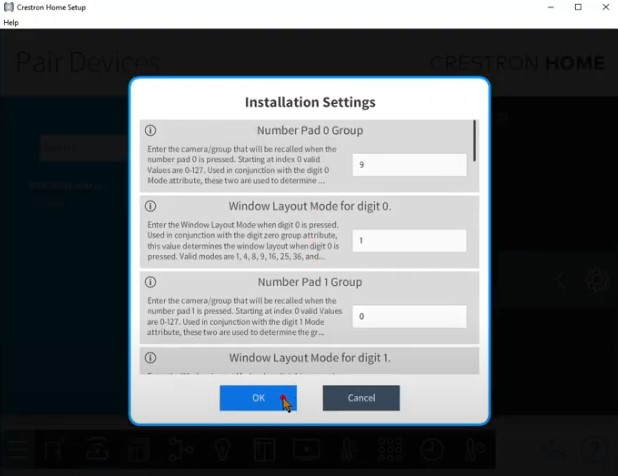

6.  Next a list of numerical command settings will be listed.  Select OK and you will see the NVR OSD Control  paired and listed.
