Adding 2N Door Stations to IC Realtime Recorders

This walkthrough will cover how to add 2N Door stations to IC Realtime Recorders.

1. Login to the Web Interface of the 2N Door Station. Enable the RTSP streaming in the 2N intercom. Set the codec to H.264 and allow anonymous access. See image below.

2. Optional - Add the IP address of the NVR to the "Authorized IP address" list as shown below. If it doesn't work with the IP filter, you can remove all the IP addresses.

3. Under "Onvif" and "Accounts," enable and create a username and password. This will be used by the Recorder to connect with the camera. See image below.

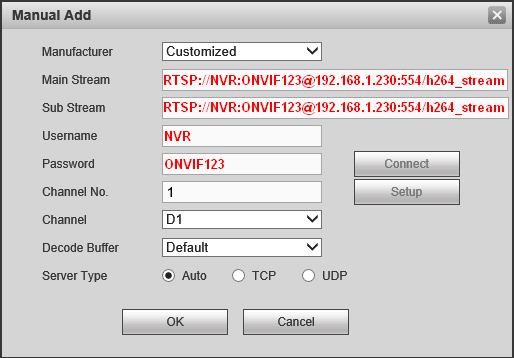

4. Login to the IC Realtime recorder. Navigate to the Remote Device/ Registration/ Add/Remove under cameras. Click the "Manual Add" option and select "Customized" or "General" for the Manufacturer field.

Input the RTSP string for the 2N camera: rtsp://user:pass@ip_intercom_address:554/h264_stream (keep in mind the user credentials ARE case sensitive)

You can try without the username and password if the device does not connect: rtsp://ip_intercom_address:554/h264_stream

See the image below for an example.

For further information regarding programming 2N devices, click the links below.

https://2nwiki.2n.cz/pages/viewpage.action?pageId=7352966

https://2nwiki.2n.cz/display/HIPC216EN/5.4.02+Streaming
