Heat Mapping

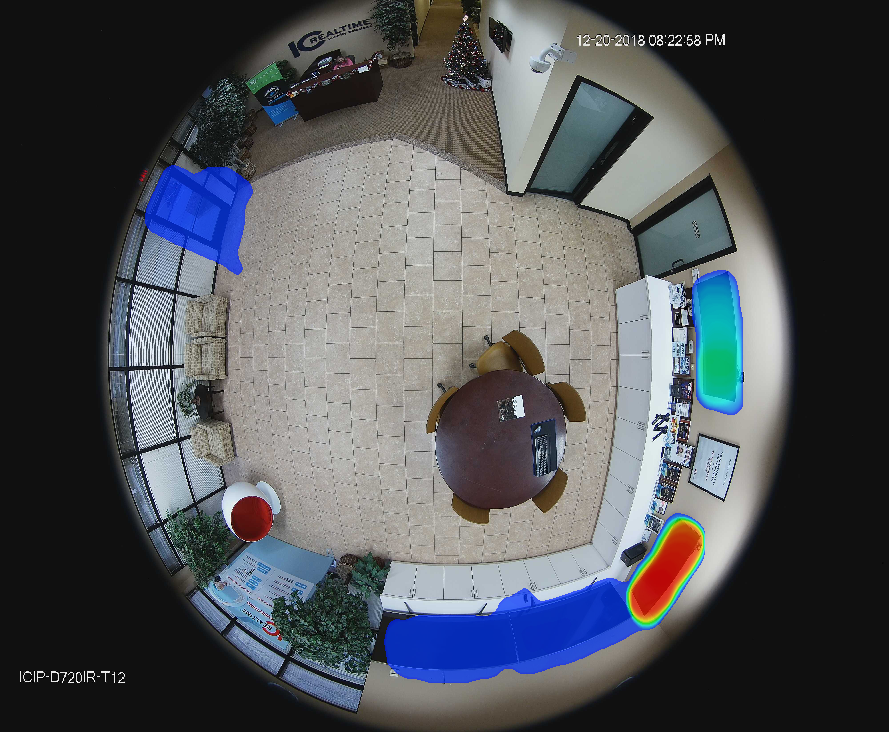

To preface, heat maps do not discriminate motion types. It will pick up any change in the image feed. That being said, heat mapping keeps track of crowd densities by using a color-coded heat map. The colors range from blue to red with red being the highest density. Heat mapping is used to gather crowd statistics and for marketing, e.g. a mall will use heat mapping to determine high trafficked areas for kiosk positioning.

Setup Instructions

• Use Internet Explorer to log into the device's IP address
  • This can be done within either the recorder or camera, but the menus will look slightly different
• Install the plugins if prompted
• Navigate to Smart Plan by going to Setup → Event → Smart Plan and enable heat map
• Select Heat Map from the menu then check the enable box
• Save the configuration

Conditions and Restrictions

• Data will only be saved for one week
  • Heat maps can be exported for long-term requirements
• Heat mapping cannot be used with other IVS types

Supported Models

Current supported models: ICIP-D2812SL5, ICIP-D3812SL5, ICIP-B8121-IR, ICIP-D8123-IR, ICIP-360L5, ICIP-D720IR-T12, ICIP-30001HD-IR-I, ICIP-MP3108-IR, ICIP-P2400-L, ICIP-P2400Y-IR, ICIP-P4030HD-IR, ICIP-P4305-IR, ICIP-P5305-IR, ICIP-P8300L, ICIP-P8305-IR, ICIP-PANO-A007, ICIP-PANO-D8420, ICIP-PTN230NS
