Tour Mode - Setup Tour Mode

A tour mode will enable automatic cycling of live camera views on a monitor or TV that is connected directly to the recorder.

To setup a tour mode on your recorder:

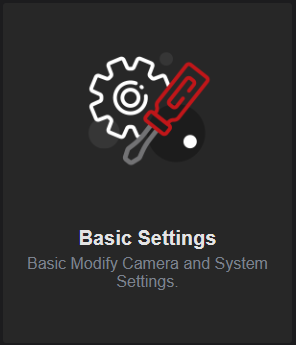

1.) From the Main Menu, navigate to the "Basic Settings".



2.) From here, go into the "Display" settings.

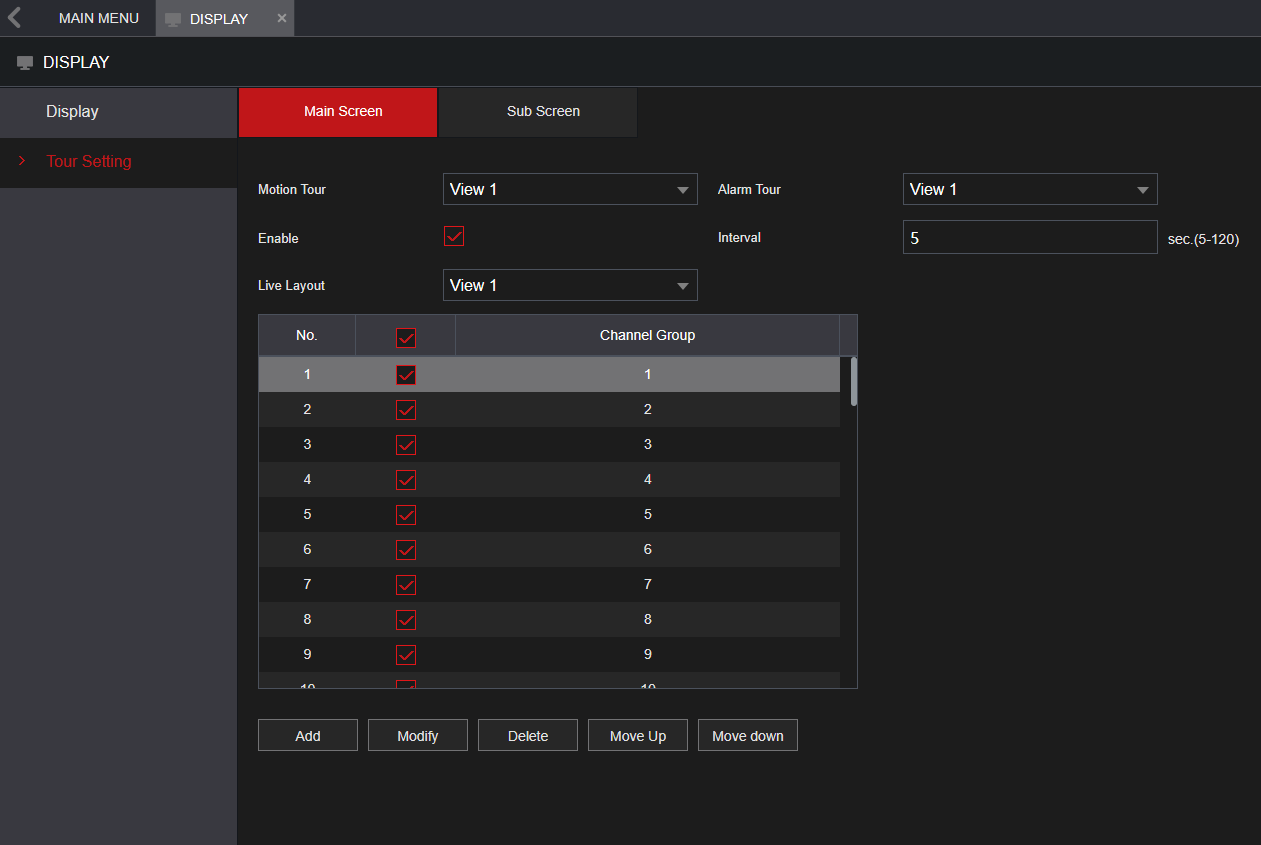

3.) Click on "Tour Setting" and check the "Enable" box. Then, confirm your setting change by clicking on "OK" on the bottom right of the screen.



4.) You will want to decide what kind of view you want to display. By default, every possible view is enabled. This means that View 1, 4, 8, etc. are enabled as soon as you turn on the tour mode. it will rotate between one camera displaying at a time, until it's cycled through all of the cameras in View 1, and then it will move on to the next view, which is View 4, then View 8, and so on.

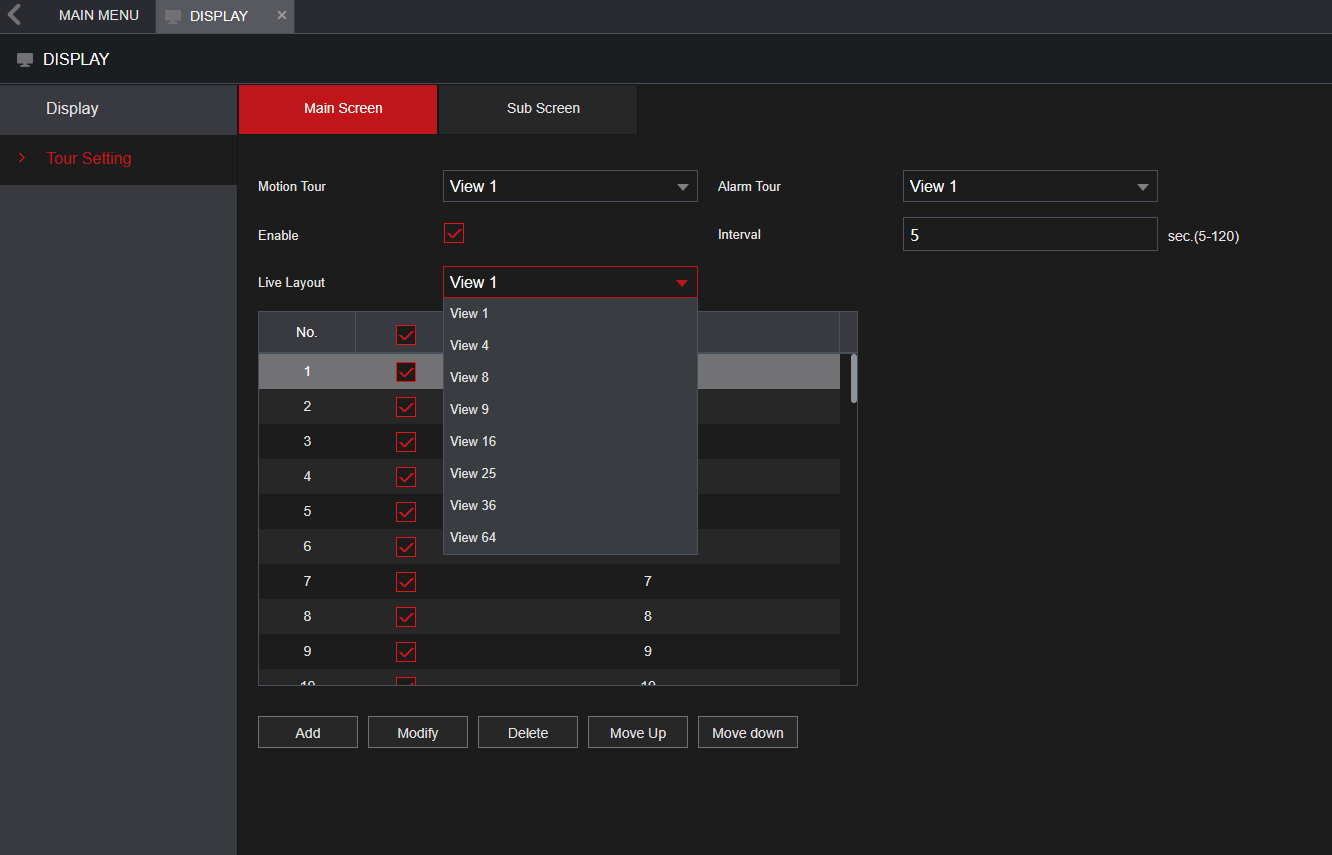

Example: If you just want a 4-view grid rotating on the monitor/TV, then you will want to click on the drop-down arrow and go through each Live Layout view option, and uncheck every camera, except for the cameras that are displaying on View 4.

Please keep in mind if you're trying to add a tour mode on a "Sub Screen", a second monitor, the number of channels available to display will be limited compared to the "Main Screen" display.



You should now successfully have a tour mode running of all your camera feeds on the monitor/TV connected to the recorder.
