Camera EPTZ Linkage

This will be a quick how-to on how to enable the NVR EPTZ Linkage settings for the IPEL-PB80F-ADW1.

Please note: EPTZ is only to assist with displaying and tracking specific predefined zones within the units scene. It will only record the raw video feed to storage.

• Display Mode
• Linkage Track

  • Linkage Track requires IVS Rules to be setup first.
  • IVS Rules In Newer 3.X Camera Firmware

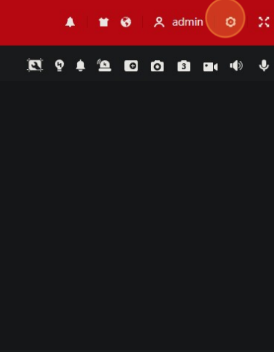

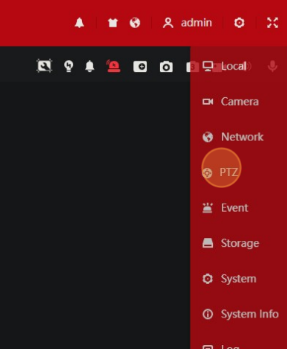

Click the "" icon -> PTZ

Click the "Enable" button to enable the EPTZ functionality and select your desired "Display Mode"

Display Mode

Display Mode: Configure the display mode of EPTZ

4 modes options: Full screen, 1+1, 1+3, 10 splits.(Full screen as default).

In different display modes, the mouse can be used to drag and zoom the split screens

Linkage Track

Linkage Track: set whether to link with tracking intelligent events. Linkage tracking requires setting up a IVS rule first.

Disable: Only display the split pictures, but doesn’t link with intelligent events.

Enable: Tracking the object triggers the events based on the configured IVS Rule.

• Linkage Track: It can be set after the linkage track is enabled and then tracking duration can be set.
• Tracking Duration: after the linkage tracking is enabled, the tracking duration can be set.

Continue until the target disappears: Split channel tracking targets until the target disappeared;

Custom: The minimum and maximum tracking duration can be set, ranging from 5 to 300 seconds.
