Camera EPTZ Display Mode

This will be a brief how-to on how to utilize the EPTZ functionality for the IPEL-PB80F-ADW1.

The NVR and IP Cameras EPTZ settings work independently from each other. It must be set on the interface that will be used most.

Please Note: The unit also will not record as a EPTZ view, it will only record the raw video data. Similar to fisheye cameras.

• Camera EPTZ Linkage
• NVR EPTZ Linkage

Enable EPTZ

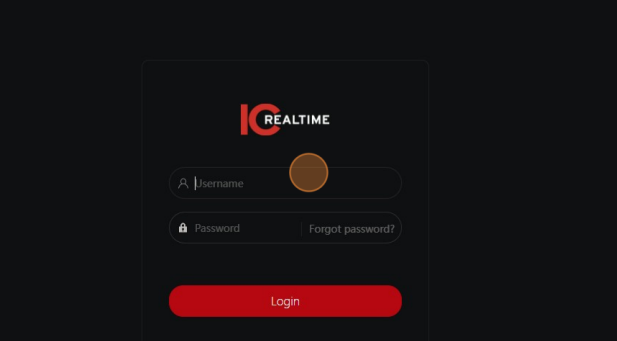

Enter in the Username and Password that was setup during the initialization process and
login.

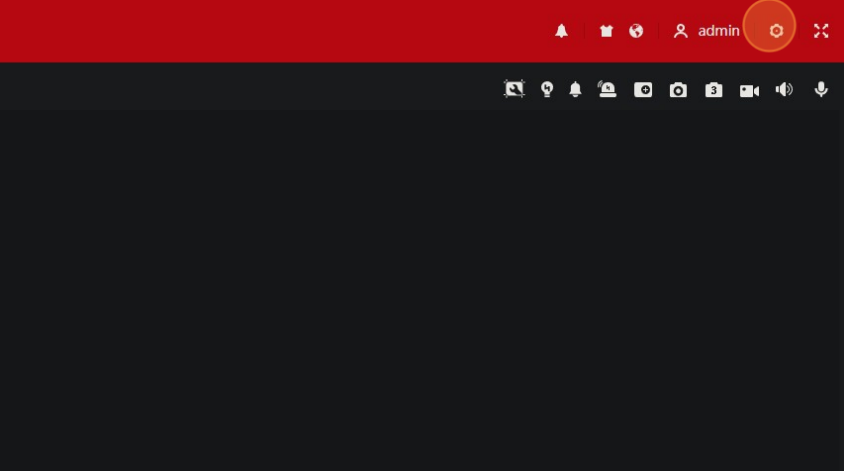

Click the "" icon

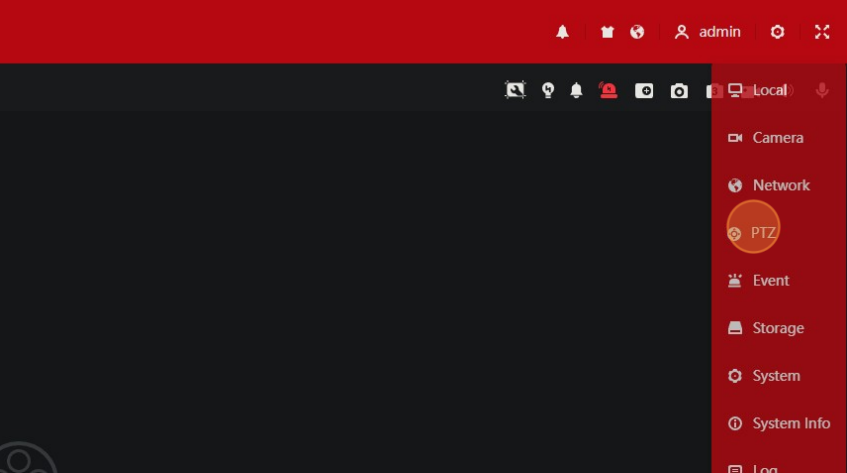

Click PTZ

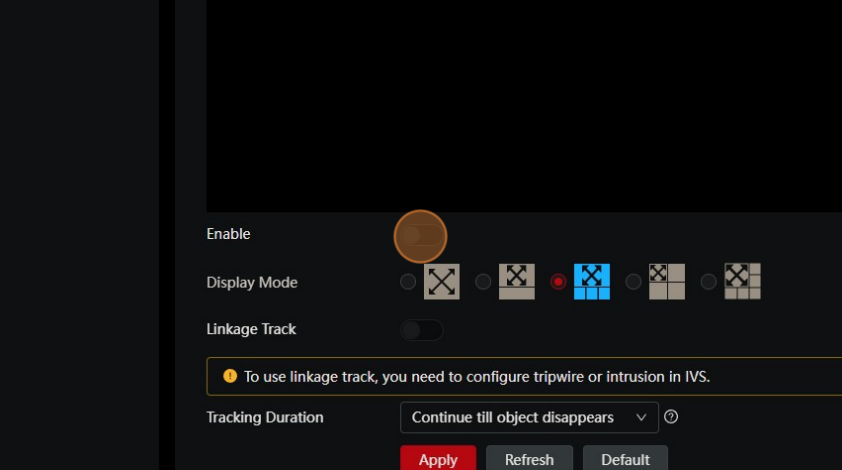

Click this button to enable the EPTZ functionality

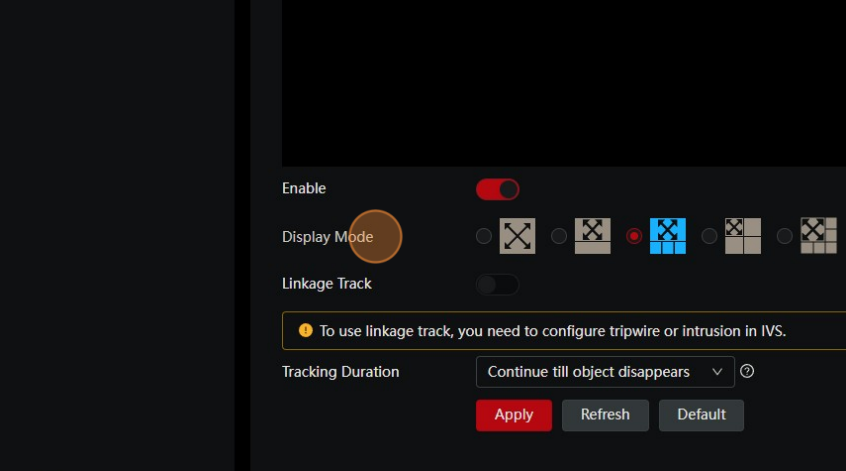

"Display Mode" will allow you to change the views.

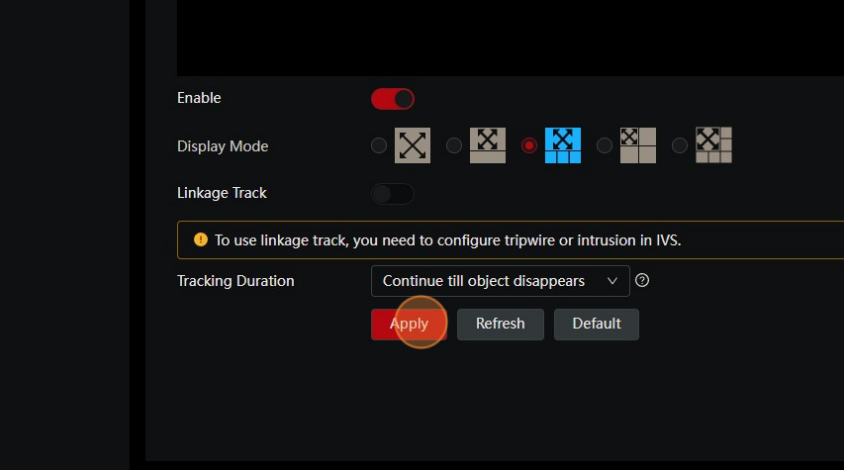

Click "Apply" to save your EPTZ setup. You will be able to see your EPTZ
configuration in the camera's Live View page.
